Capri L4-140 2.3L SOHC Turbo
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Cooling System
>>
Radiator Cooling Fan Control Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

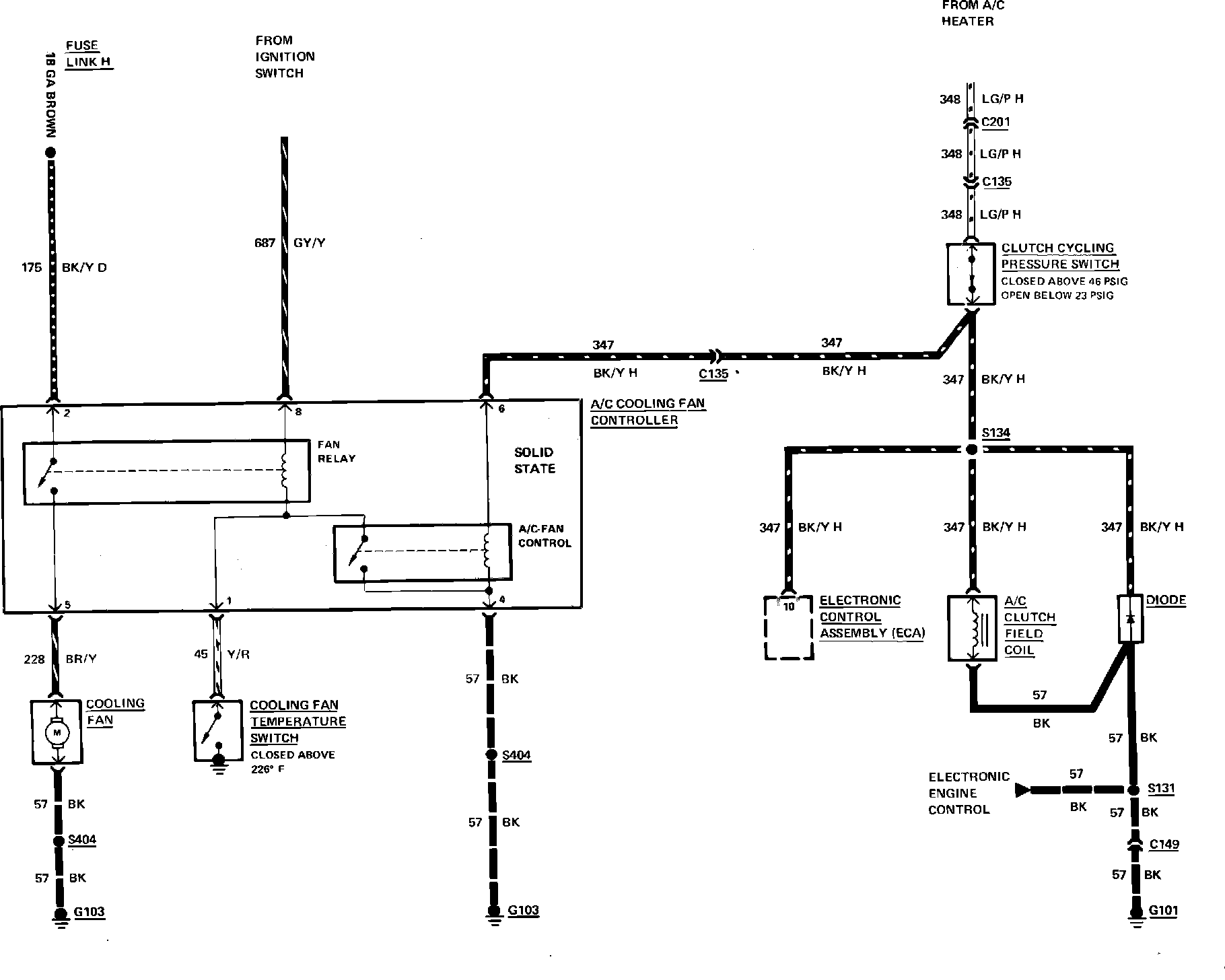

Fig. 7 Air conditioning compressor clutch & cooling fan wiring circuit. 1983 Capri & Mustang with 4 cyl engine with turbocharger:
