Wiring Diagrams

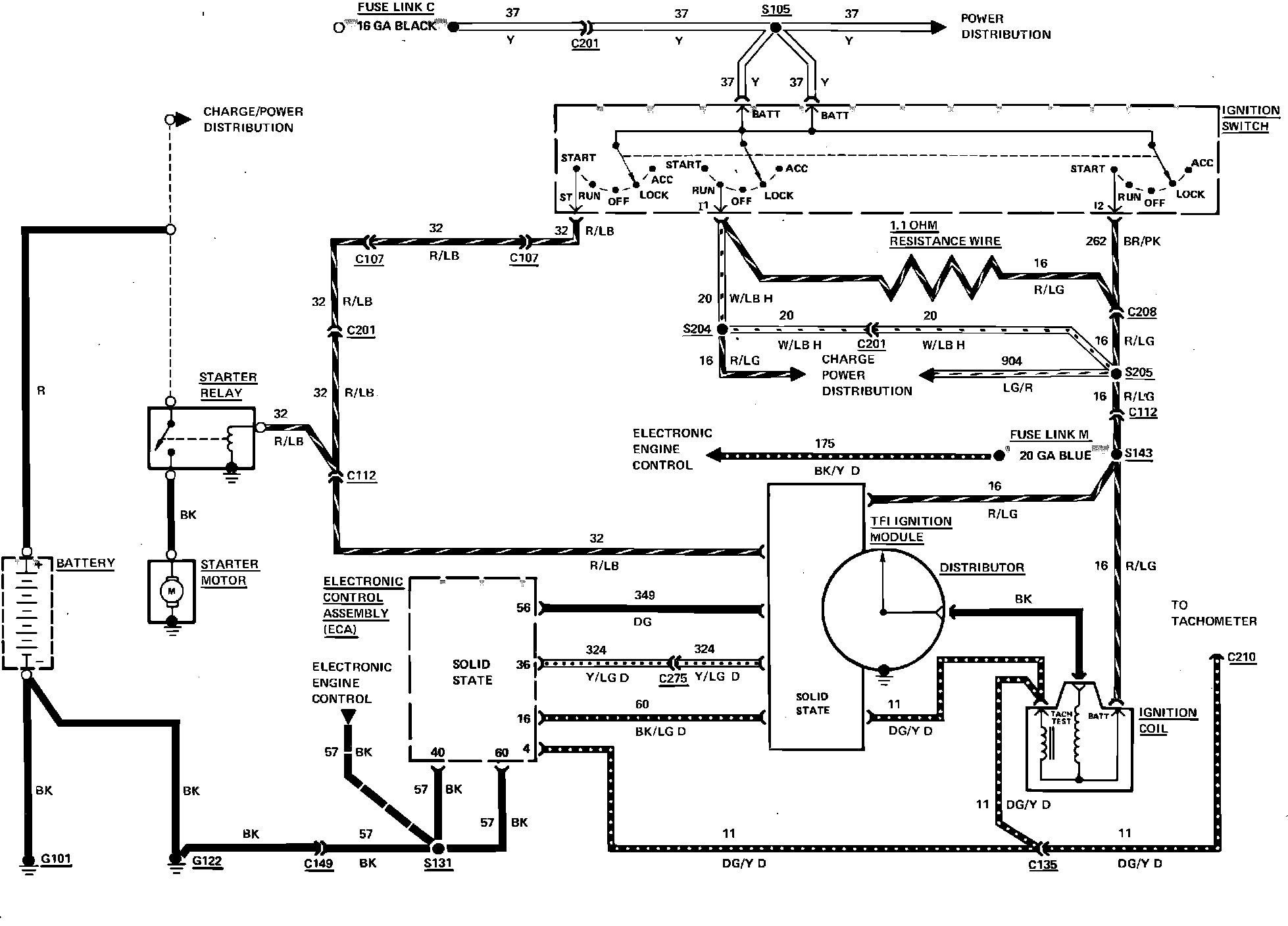

Fig. 42 Ignition, starting system & tachometer wiring circuit. 1983 Capri & Mustang witrh turbocharged 4 cyl engine:
