Home >> Mercury >> 1982 >> Zephyr V8-255 4.2L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Carburetor >> System Specifications >> Adjustment Specification >> 2150

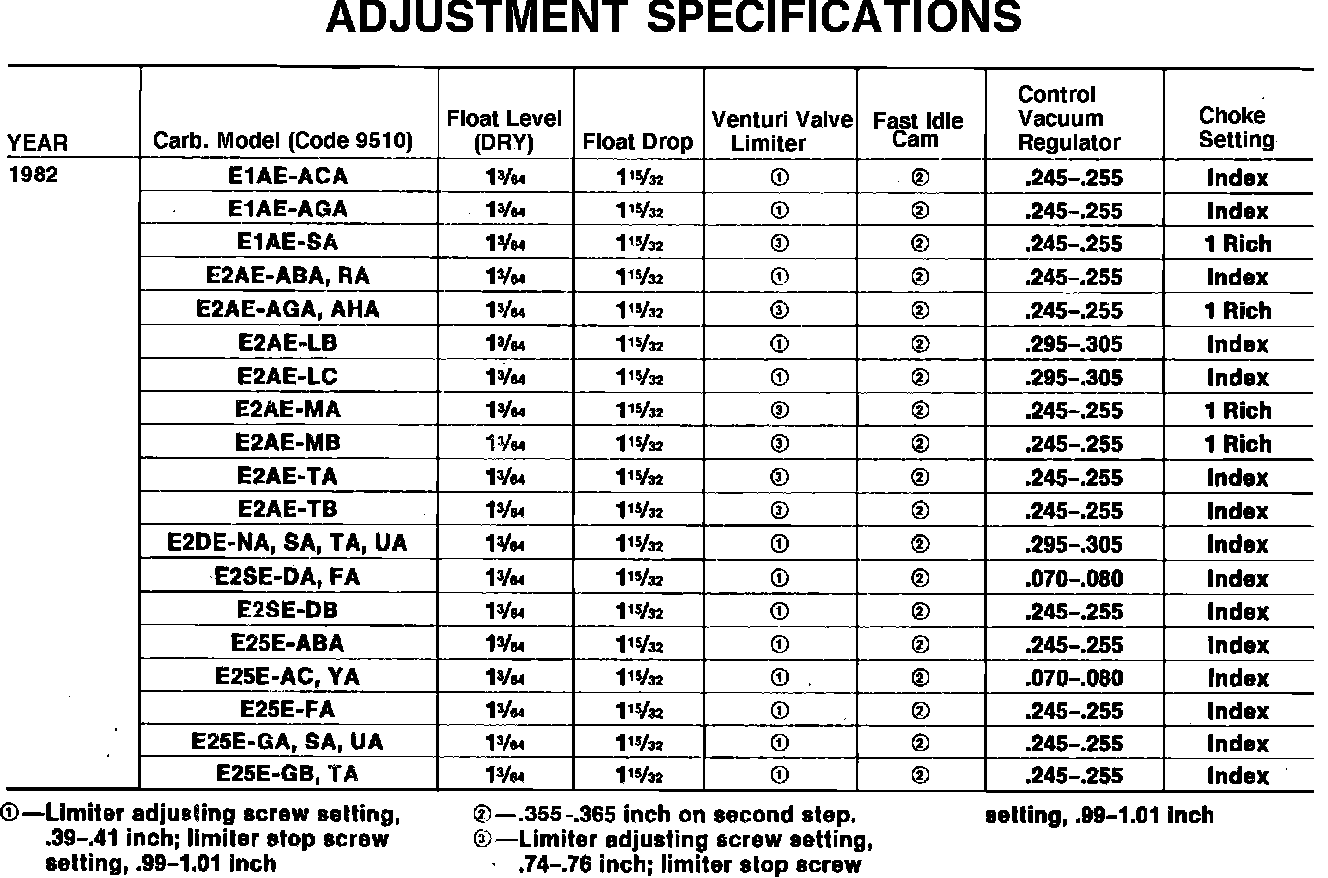

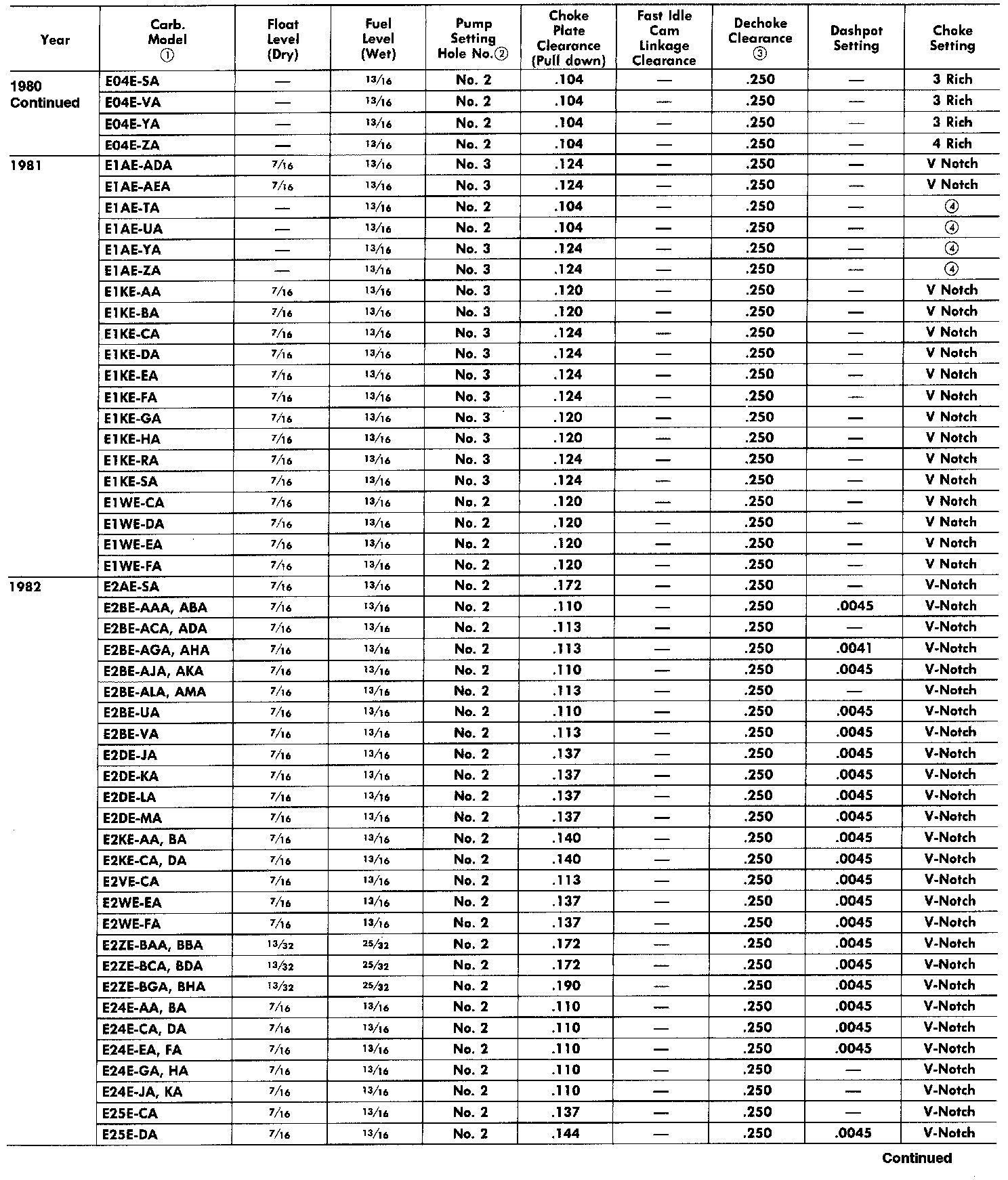

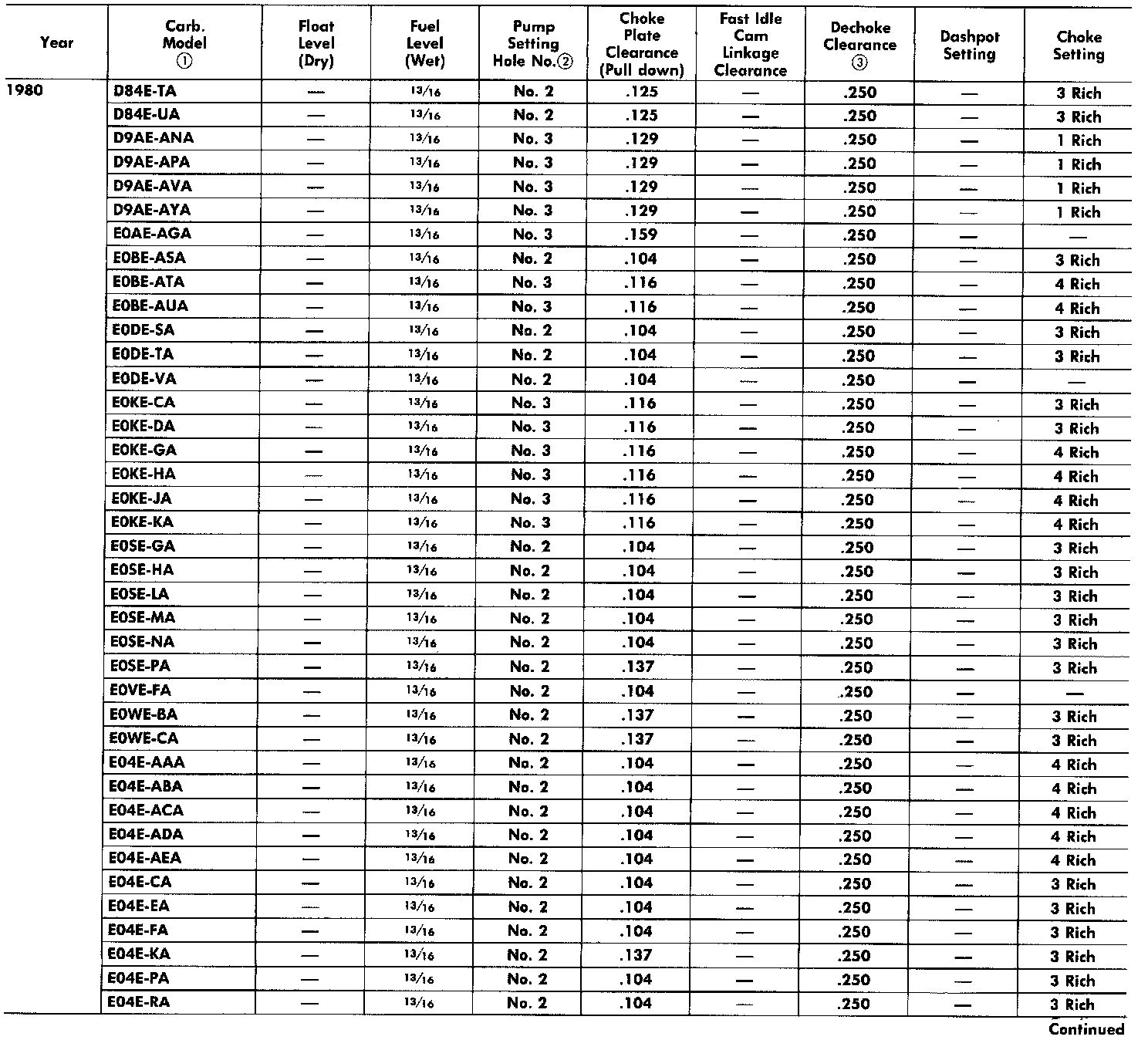

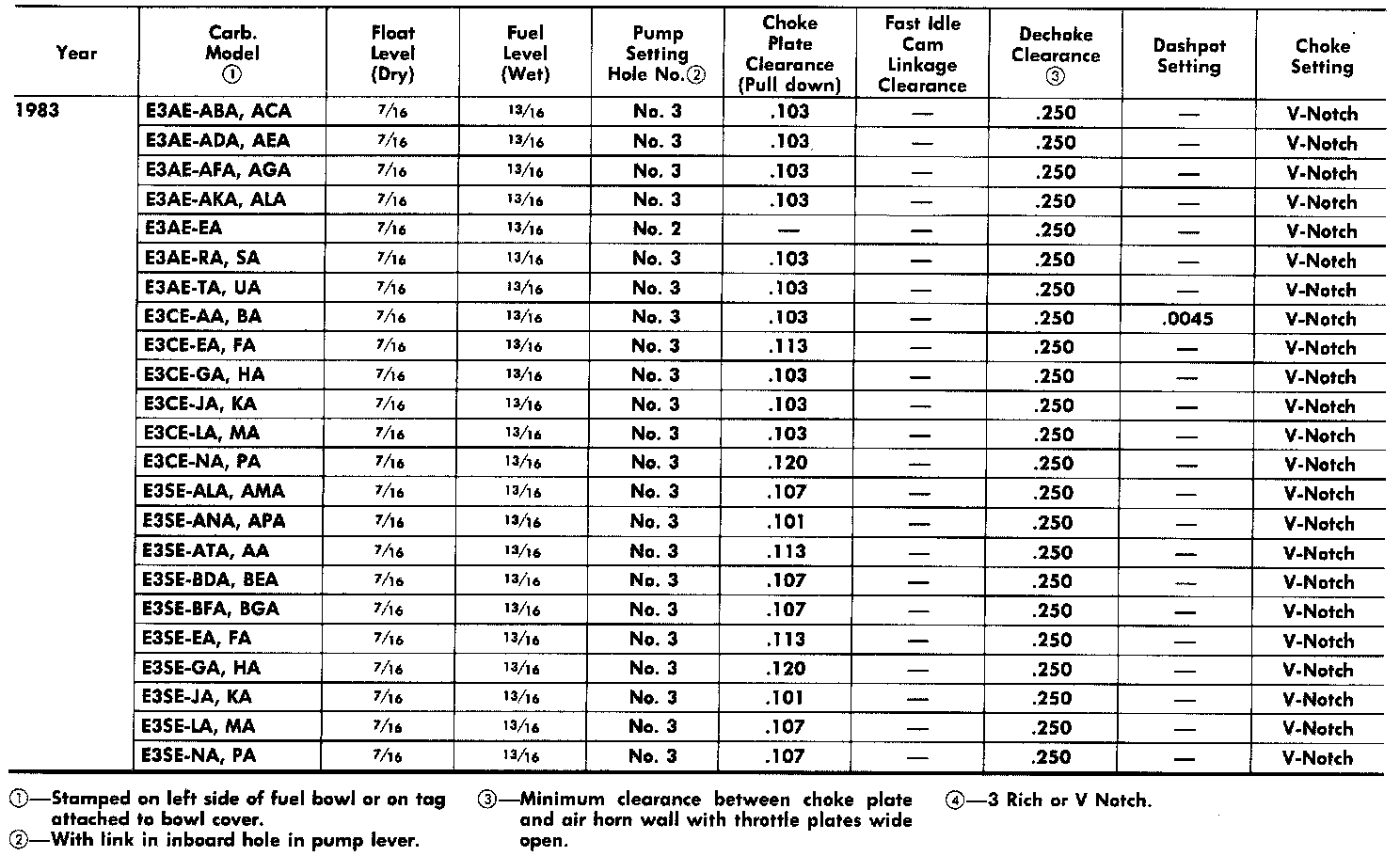

Adjustment Specification: 2150

Carburetor:



Carburetor:



Carburetor:



Adjustment Specifications:



Adjustment Specifications:
