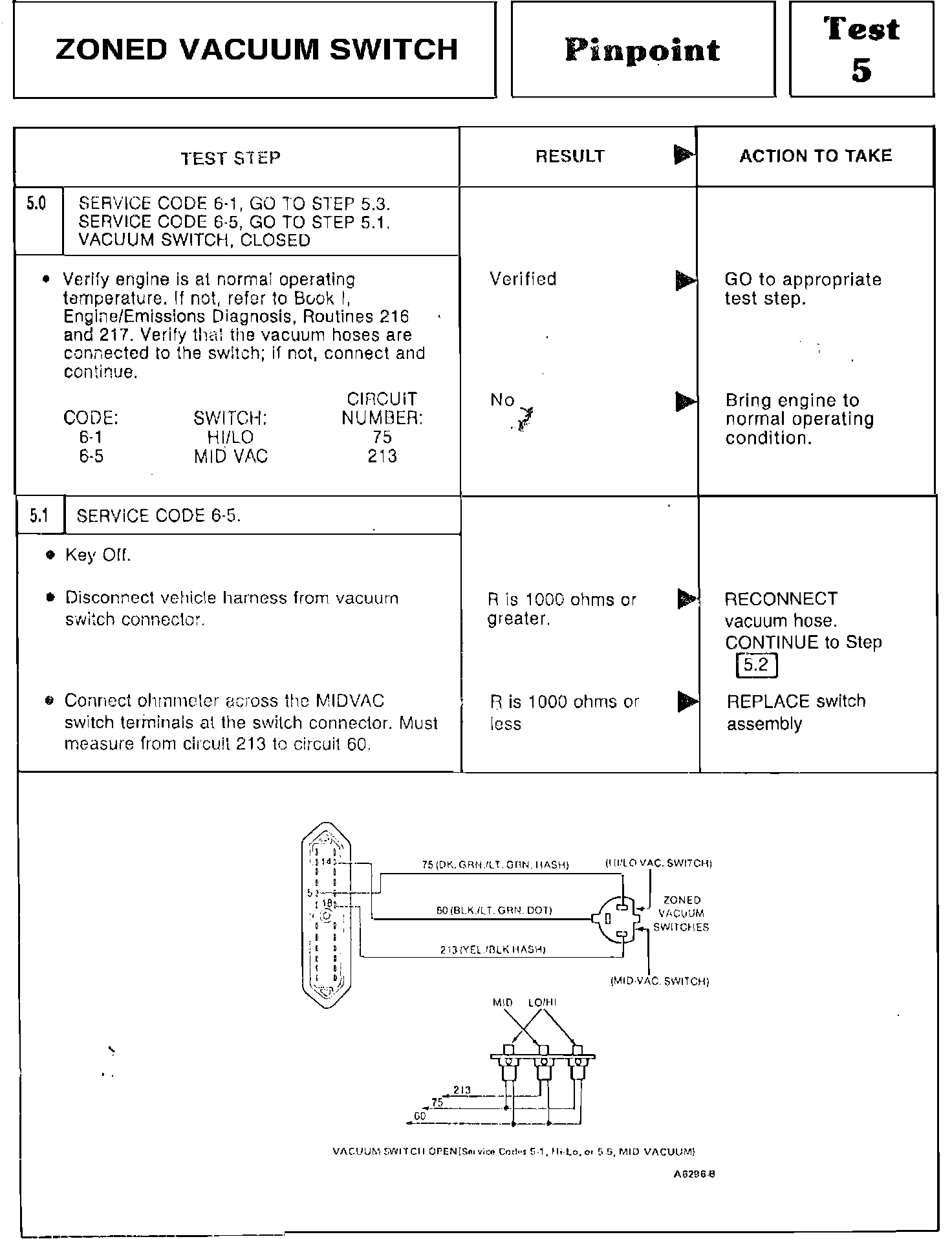

5.0 and 5.1 Zoned Vacuum Switch, Service Codes 6-1, 6-5
5.0 and 5.1 Zoned Vacuum Switch, Service Codes 6-1, 6-5
Test Step 5.0 Thru 5.1:
