Home >> Mercury >> 1982 >> Zephyr V8-255 4.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> 5.0 Thru 5.2 - Zoned Vacuum Switch

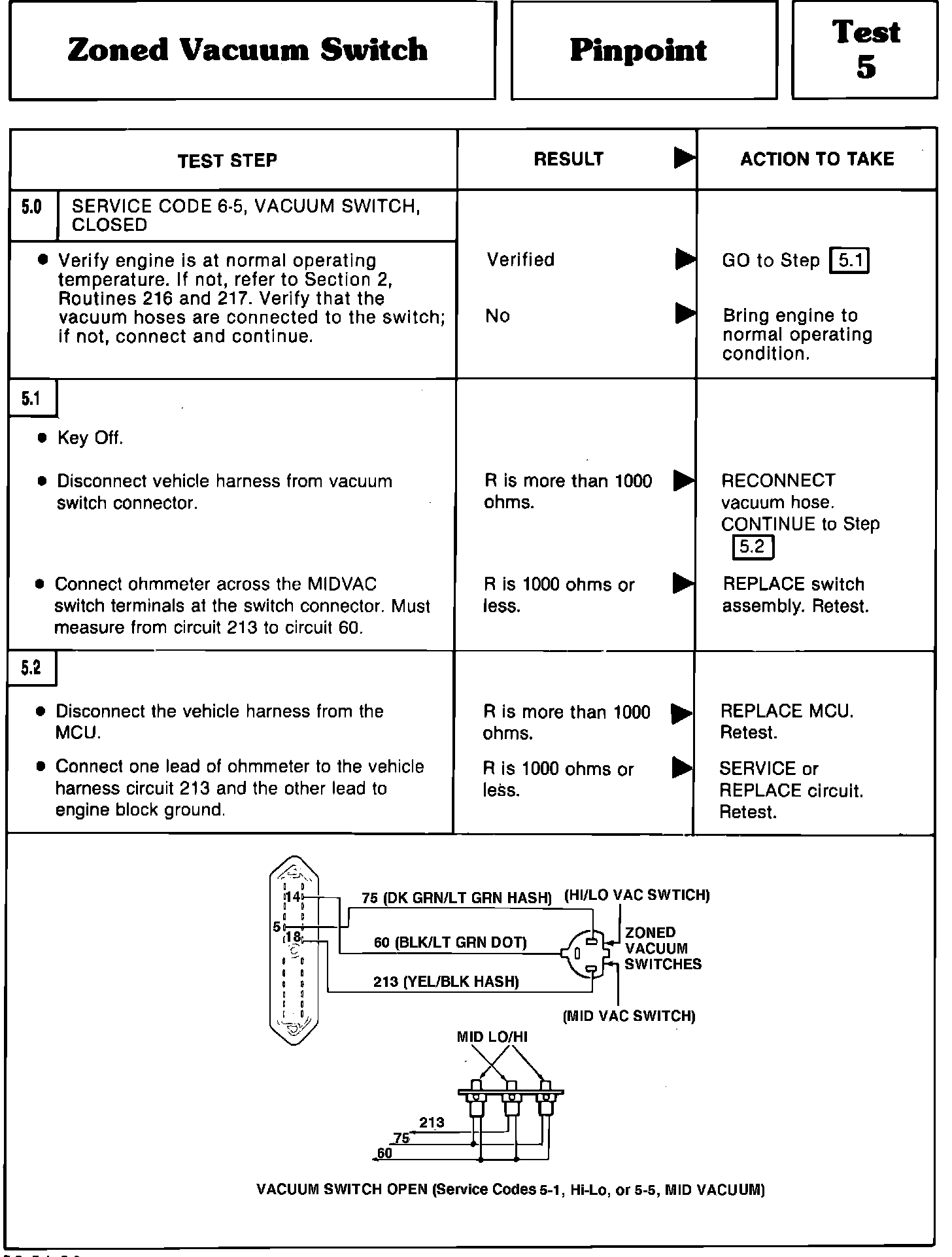

5.0 Thru 5.2 - Zoned Vacuum Switch

Test Step 5.0 Thru 5.2:
