4.0 Thru 4.5 Zoned Vacuum Switch
>>
4.2, 4.3 & Wiring Diagram
4.2, 4.3 & Wiring Diagram

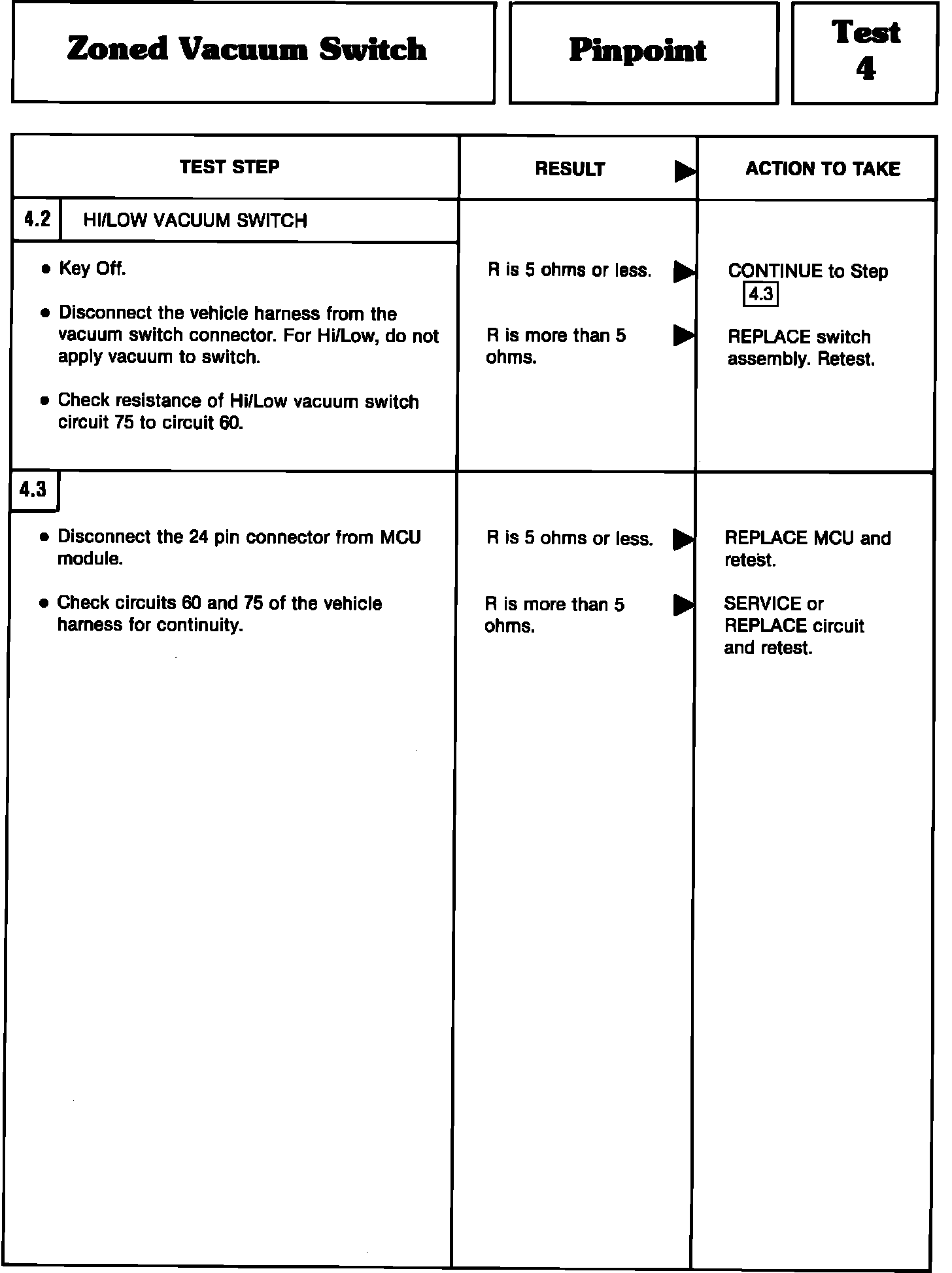

Test Step 4.2 Thru 4.3:
