Mercury
>>
1982
>>
Zephyr V8-255 4.2L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>

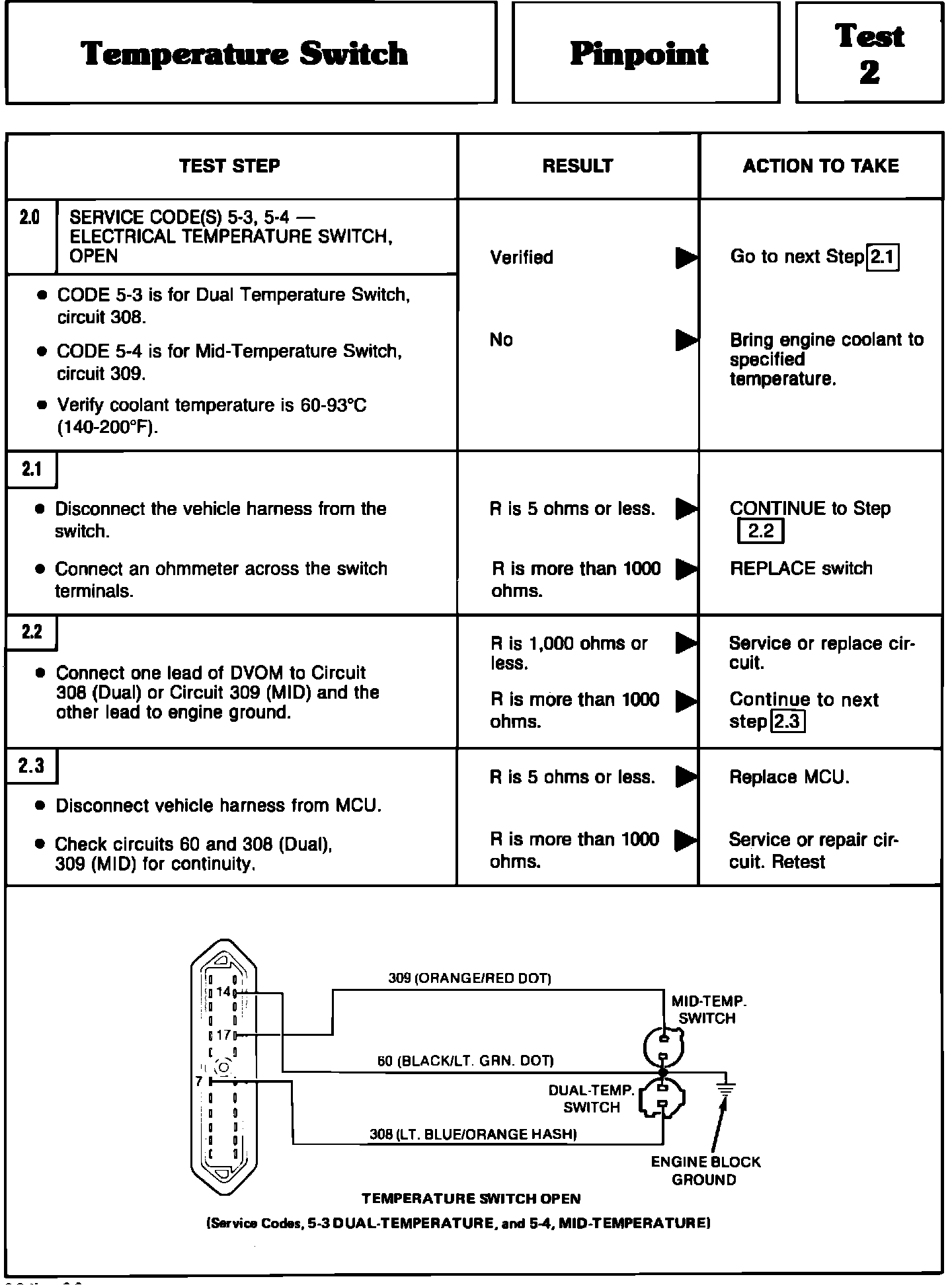

2.0 Thru 2.3, Service Code 5-3, 5-4 & Wiring Diagram
2.0 Thru 2.3, Service Code 5-3, 5-4 & Wiring Diagram
Test Steps 2.0 Thru 2.3:
