Home >> Mercury >> 1982 >> Zephyr V8-255 4.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> 14.0 Thru 14.8 - No Self-Test Output >> 14.1, 14.2 & Wiring Diagram

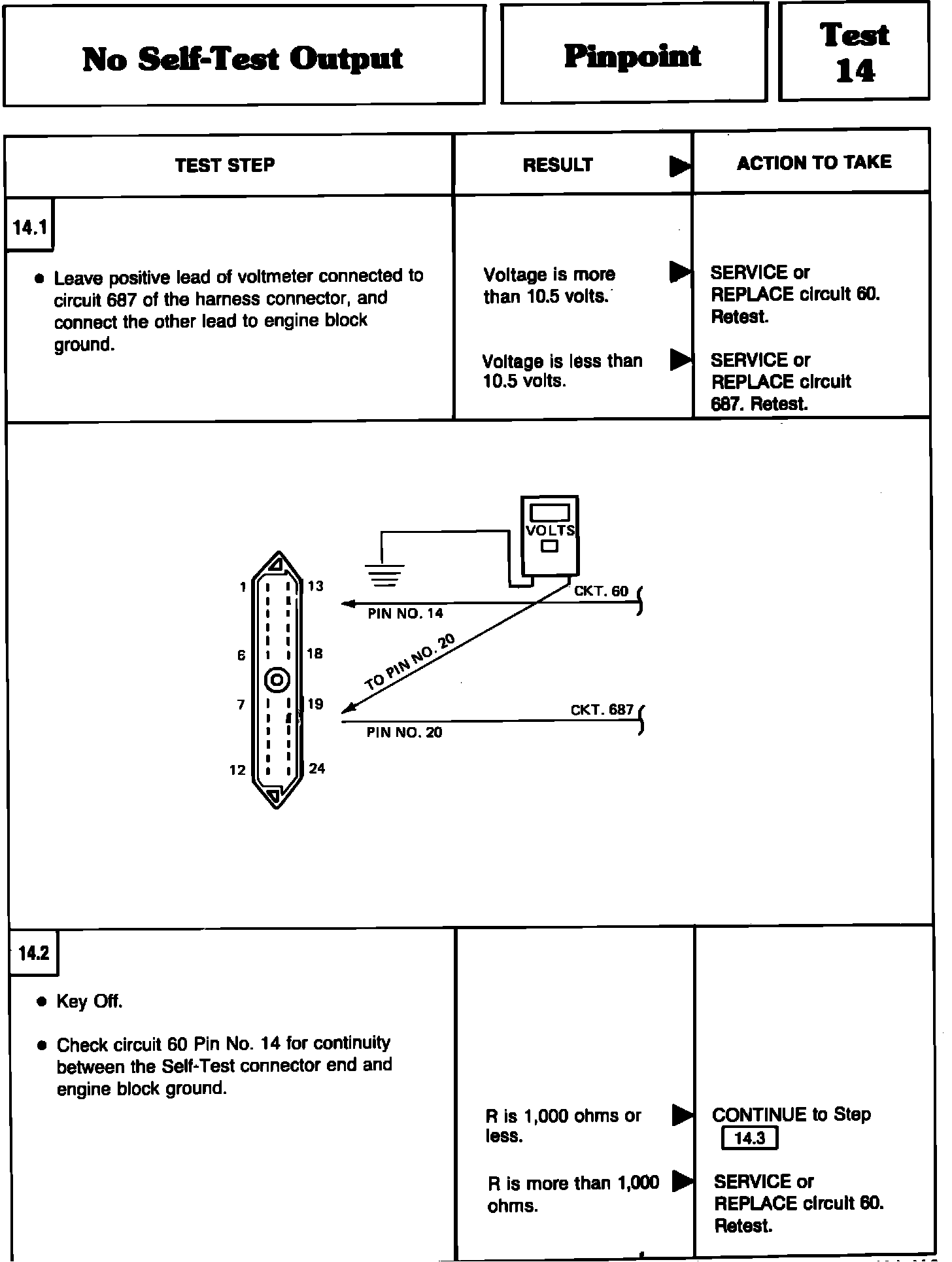

14.1, 14.2 & Wiring Diagram
