Home >> Mercury >> 1982 >> Zephyr V8-255 4.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> 1.2 & Wiring Diagram

1.2 & Wiring Diagram

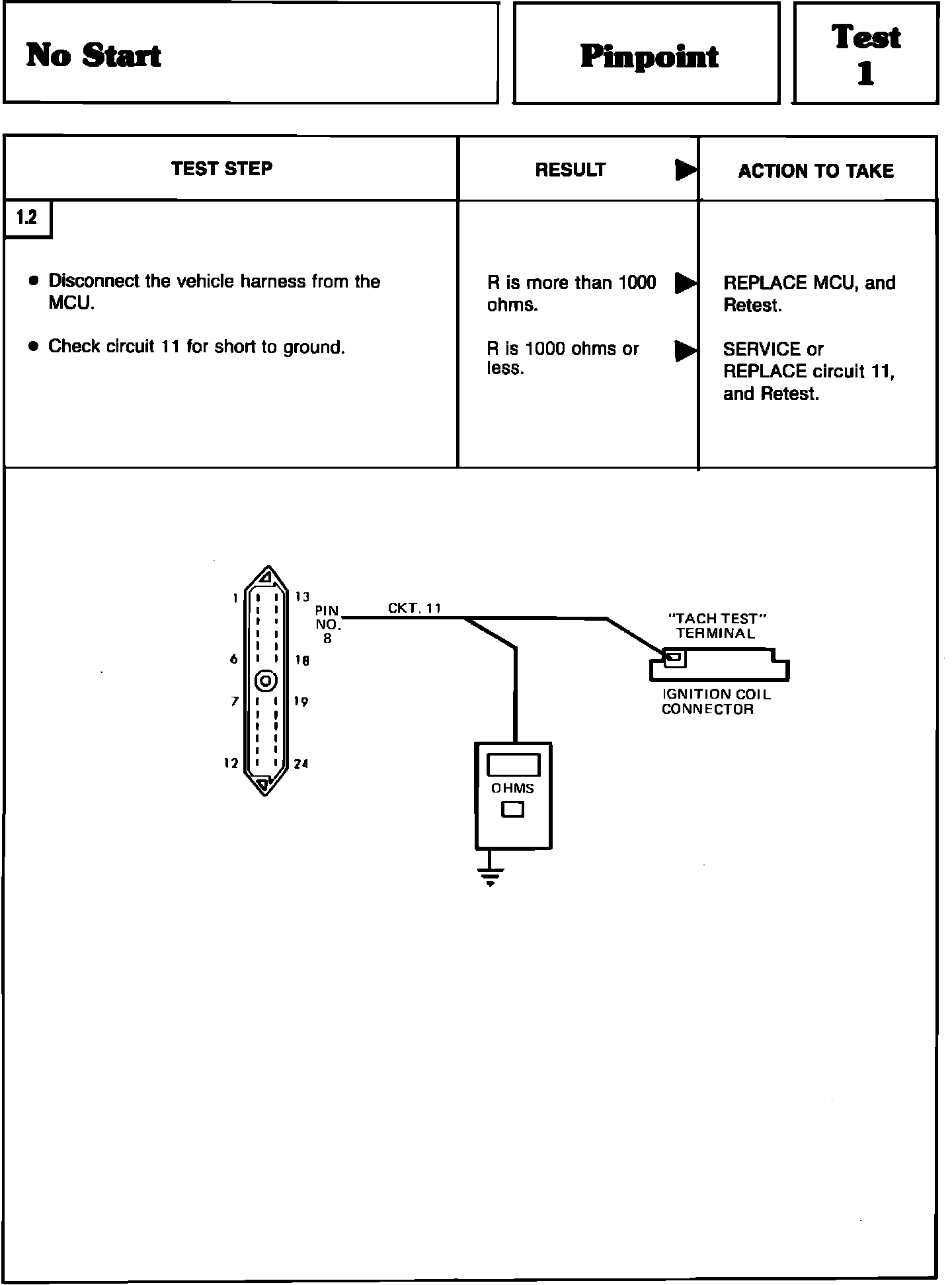

Test Step 1.2:
