Home >> Mercury >> 1982 >> Zephyr L6-200 3.3L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Diagrams

Ignition System: Diagrams

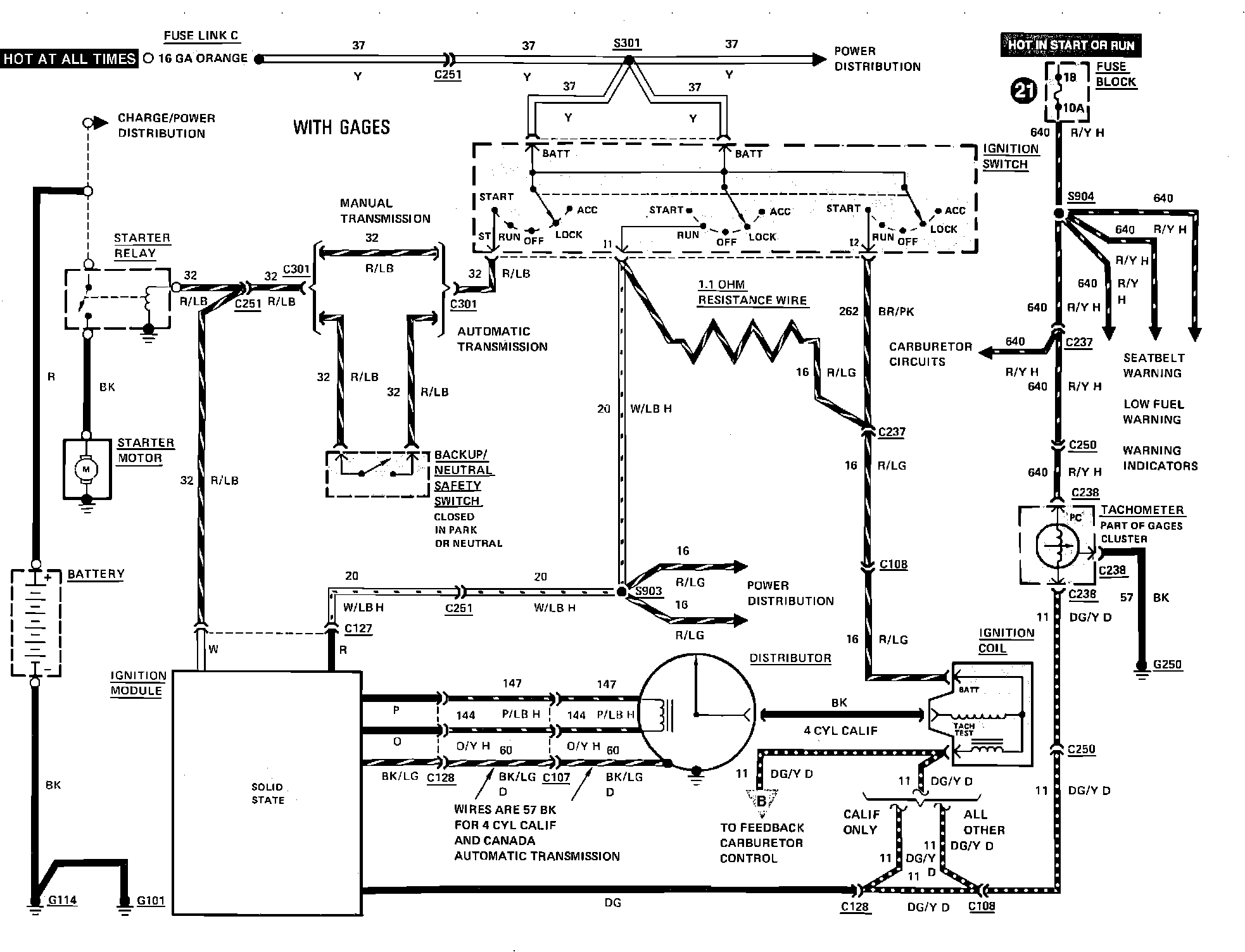

Wiring Diagram - Start/Ignition:

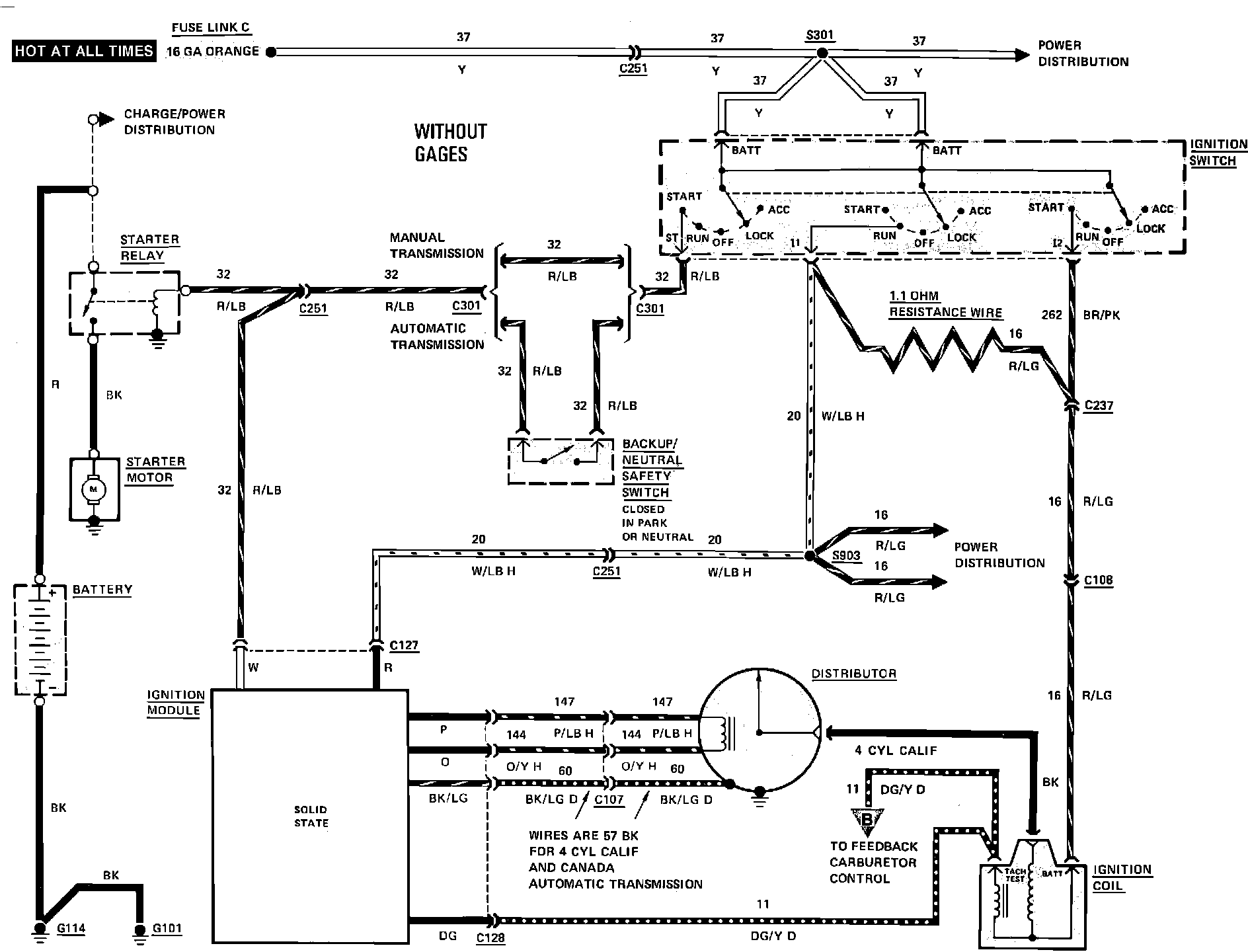

Wiring Diagram - Start/Ignition:
