Auxiliary Air Inlet Valve

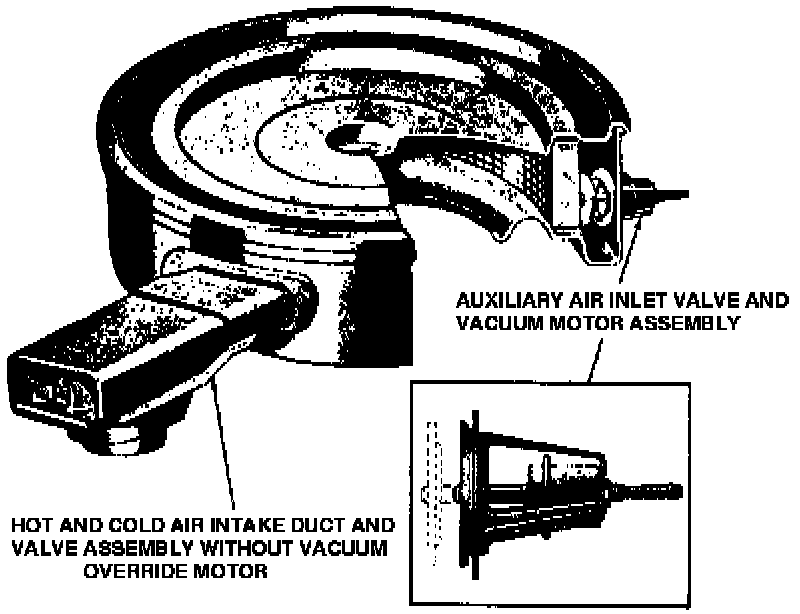

Fig.5 - Auxiliary Air Inlet Valve:

The auxiliary air inlet valve is mounted on the outside of the air cleaner housing and serves to allow outside air to bypass the heated air inlet system when the engine is under load. When manifold vacuum is low, a spring in the vacuum motor allows the valve to open, providing an additional flow of air into the air cleaner housing, Fig. 5.
