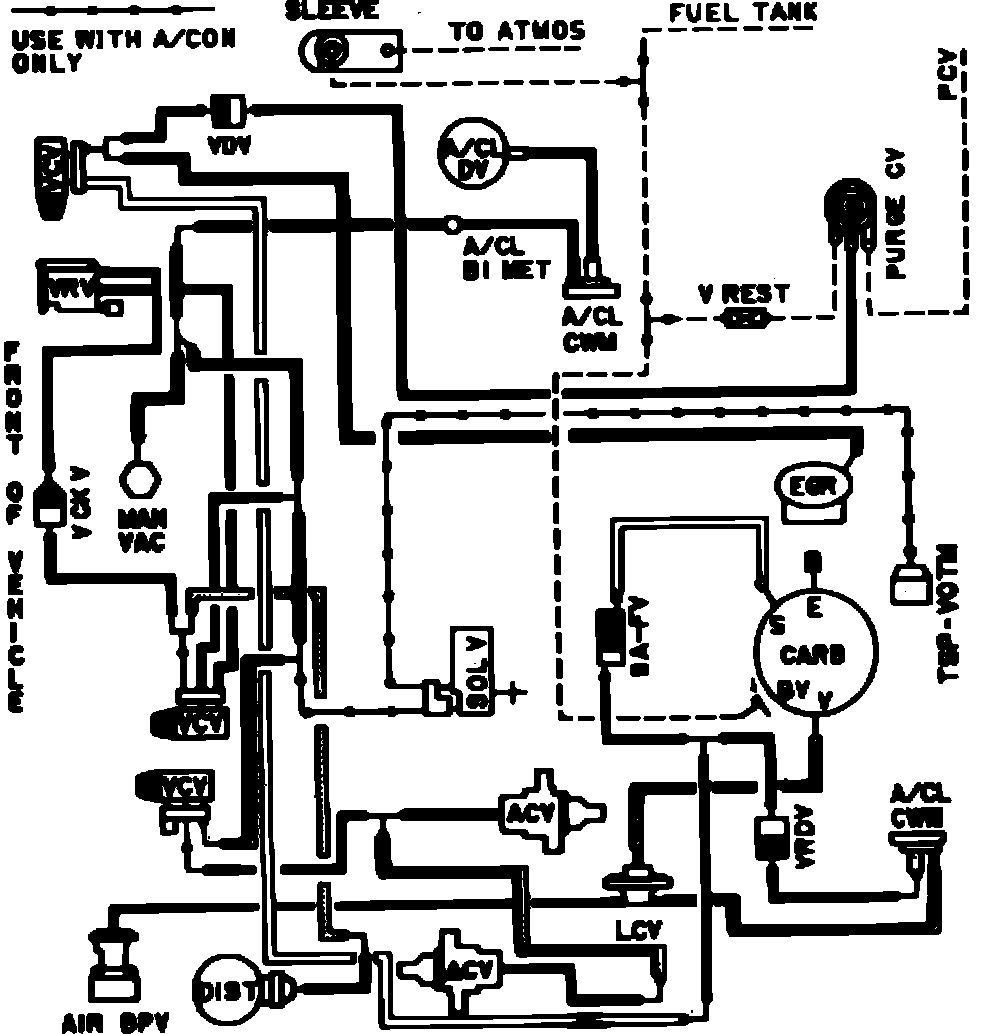

Fig. 43 Calib. Code 2-12T-R02 Federal, Exc. High Alt.
Fig. 43 Calib. Code 2-12T-R02 Federal, Exc. High Alt.
Vacuum hose routing:
