Secondary Throttle Stop Screw

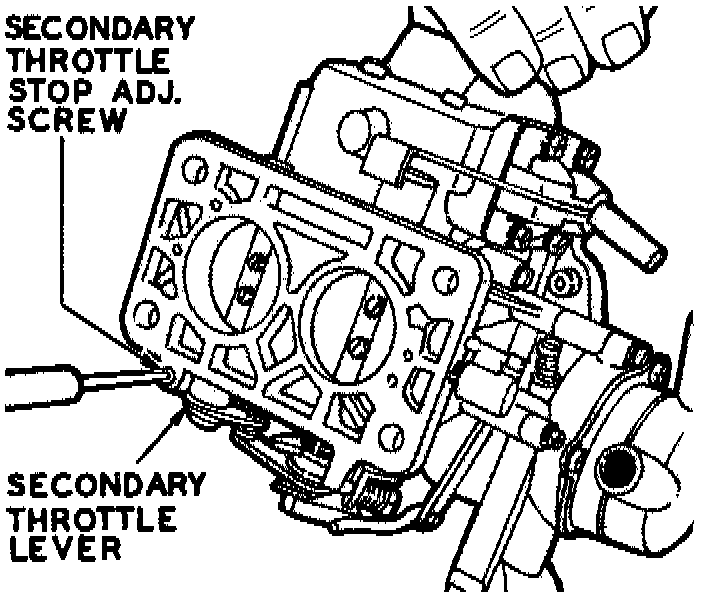

Fig 8 - Carburetor:

1. Fig. 8-Back off the secondary throttle stop screw until the secondary throttle plate Seats in its bore.
2. Turn the screw in until it touches the tab on the secondary throttle lever.
3. Turn the screw inward an additional 1/4 turn.
