Dry Float Setting

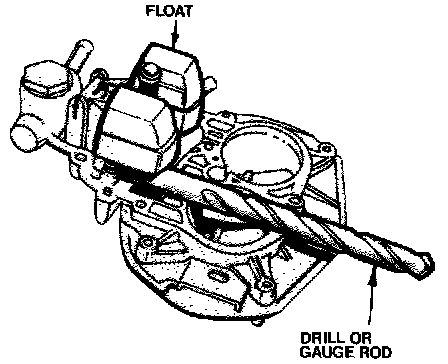

Fig 3 - Carburetor:

1. Fig. 3-With the bowl cover held in an inverted position and the float tang resting lightly on the spring loaded fuel inlet needle, measure the clearance between the edge of the float and the bowl cover.
2. Adjust clearance by bending the float tang up or down as required, Fig. 4.


NOTE: Do not scratch or damage the tang. Adjust both floats equally.
