De-Choke Clearance

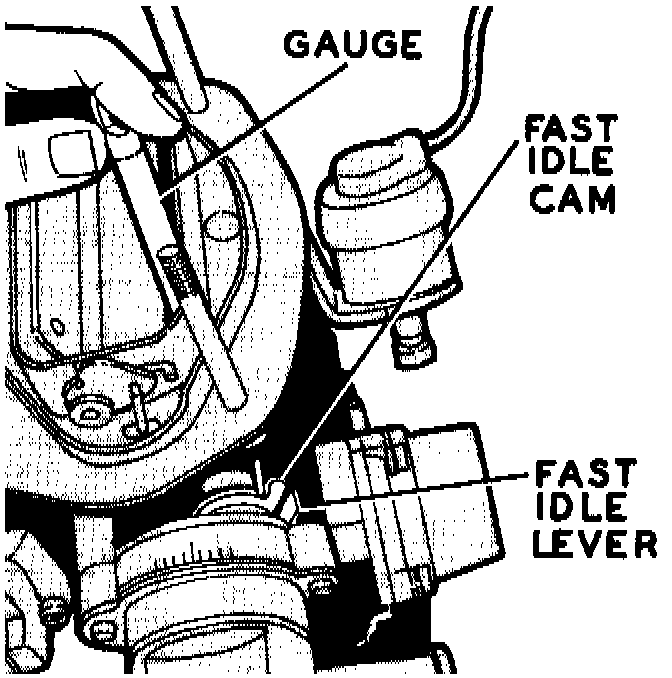

Fig 5 - Carburetor:

Fig. 5-Hold throttle lever in wide open position and take slack out of choke linkage by applying finger pressure to top edge of choke plate. Measure clearance between lower edge of choke plate and air horn wall. Adjust by bending tab on fast idle lever where it touches the fast idle cam.
