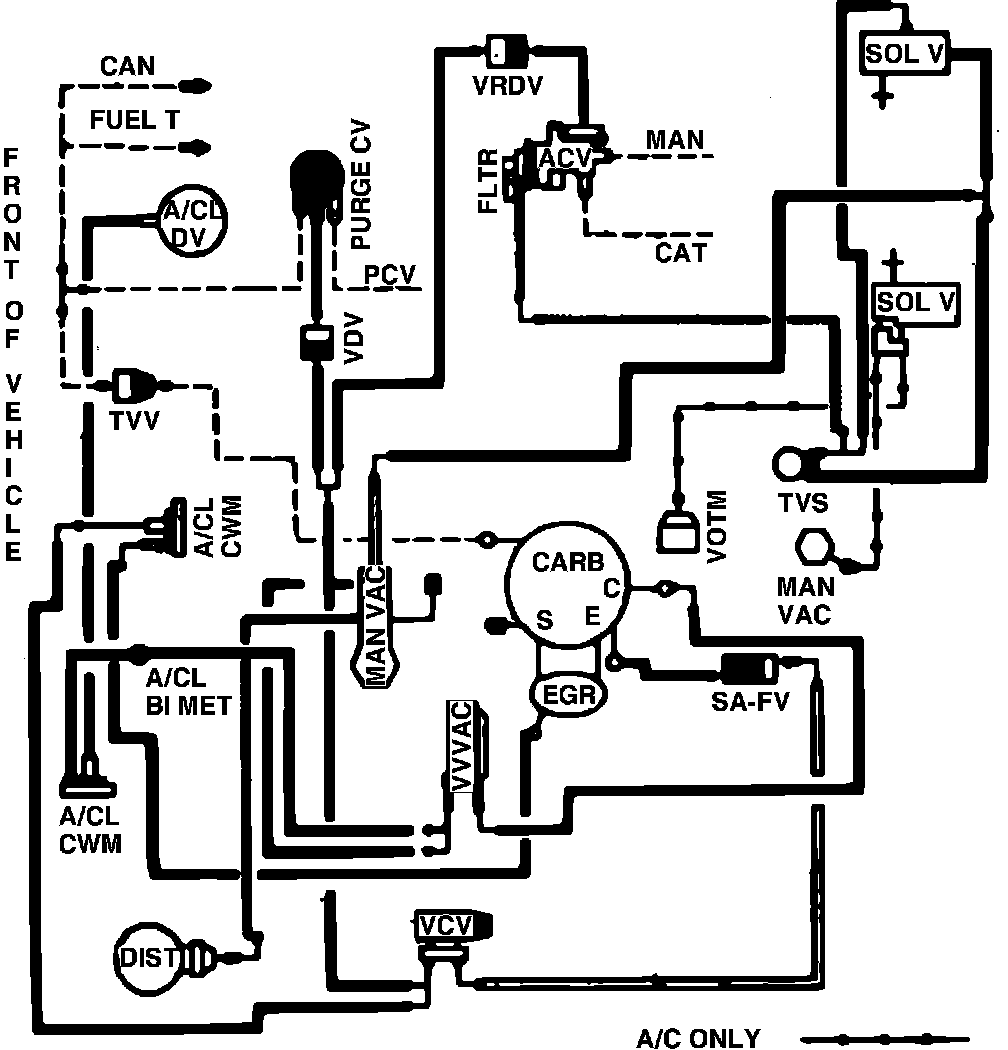

Fig. 37 Calib. Codes 2-06A-R0 & 2-06A-R10 Fed. Exc. High Alt.
Fig. 37 Calib. Codes 2-06A-R0 & 2-06A-R10 Fed. Exc. High Alt.
Vacuum hose routing:
