FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1982
>>
Zephyr L4-140 2.3L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>

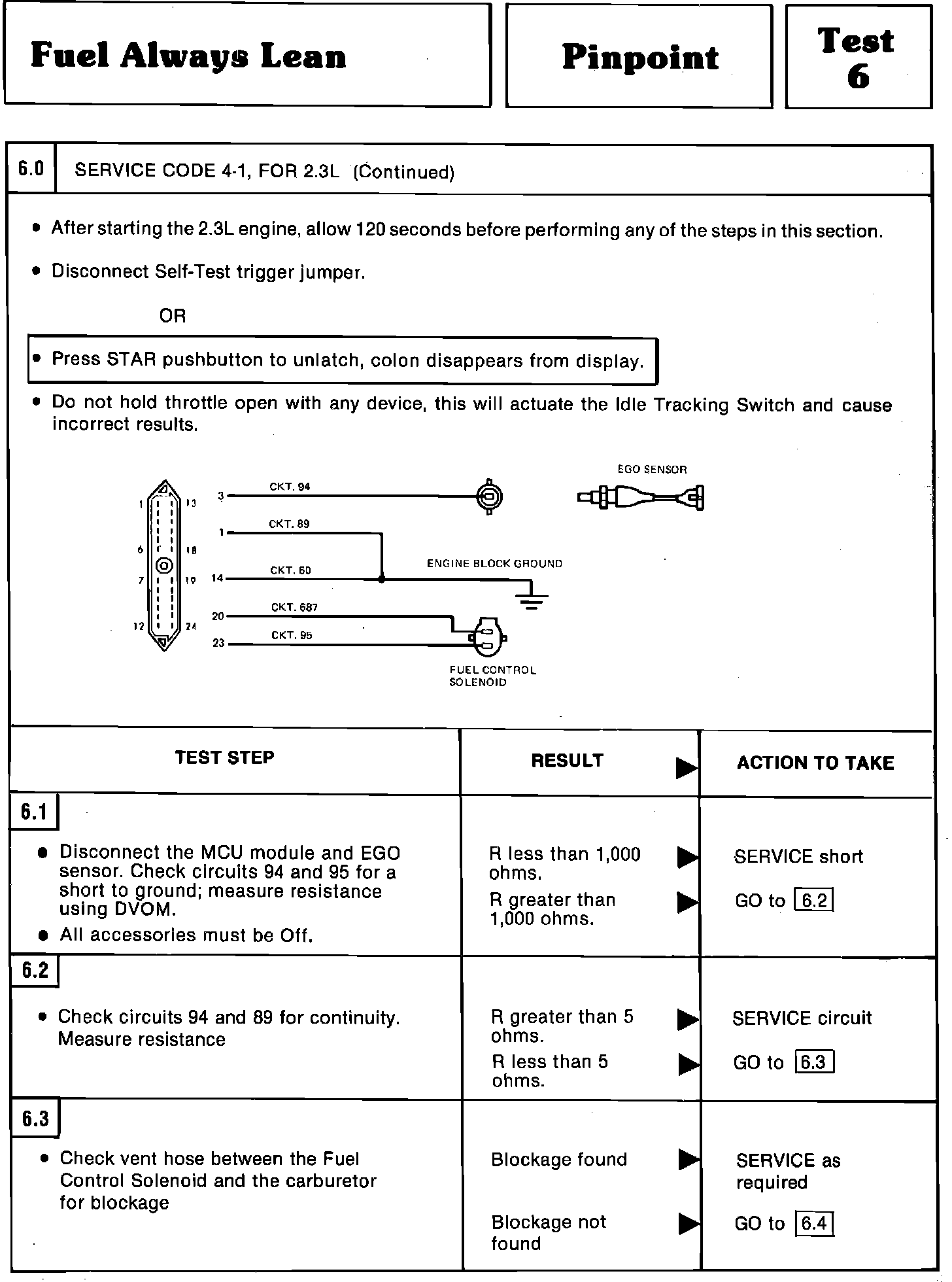

6.0 Fuel Always Lean, Service Code 4-1
>>
6.1 Thru 6.3 & 6.0 Wiring Diagram
6.1 Thru 6.3 & 6.0 Wiring Diagram
