Home >> Mercury >> 1982 >> Zephyr L4-140 2.3L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> 14.0 Self-Test Not Functional >> 14.0 Wiring Diagram & 14.1

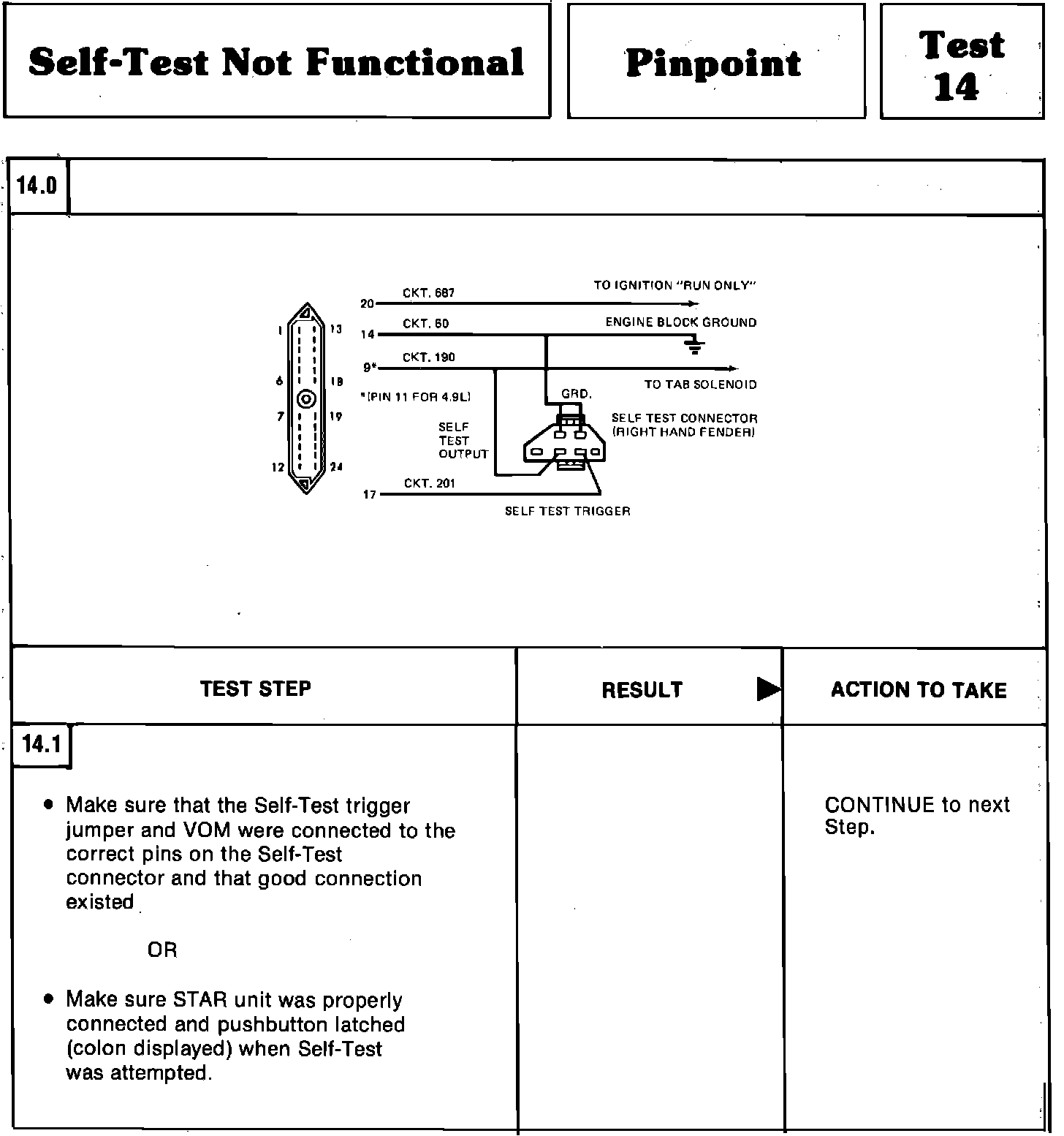

14.0 Wiring Diagram & 14.1
