Float Level

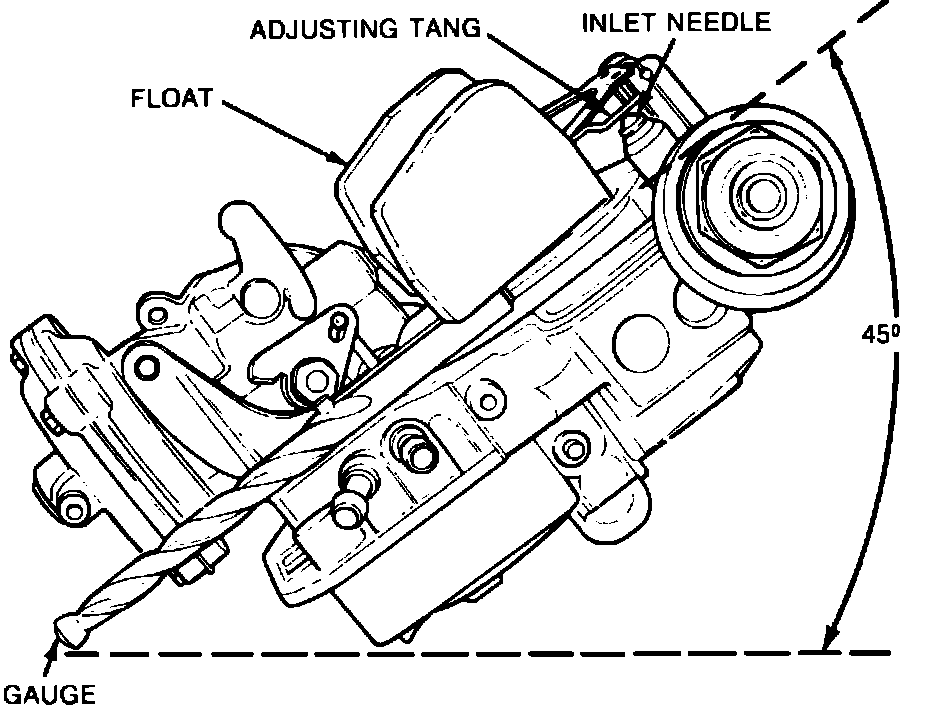

Fig. 5 Float level adjustment:

1. Invert air horn assembly and hold at a 45° angle with air horn gasket removed, Fig 5. Ensure float tank rests lightly on inlet needle.
2. Measure clearance at end of float, Fig 5.
3. Adjust clearance to specifications by removing float and bending float level adjusting tank up or down as necessary.
