Thermactor System Location
>>
W/H.O. Engine
W/H.O. Engine

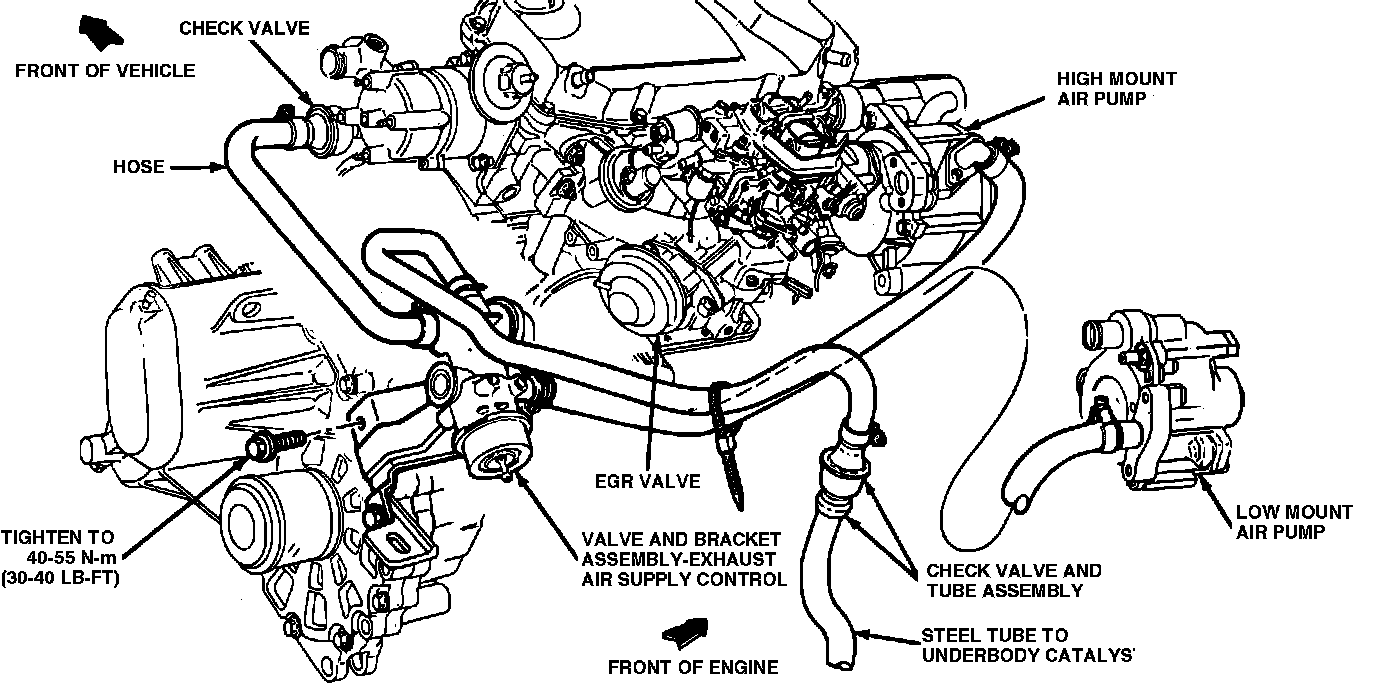

Fig. 6 Thermactor system. 1982-83 Escort, EXP, LN7 & Lynx W/4-97.6 H.O. engine:
