Home >> Mercury >> 1982 >> LN7 L4-098 1.6L VIN 4 2-bbl >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams >> W/O Thermactor >> Calib. Code 2-4G-R0

Calib. Code 2-4G-R0

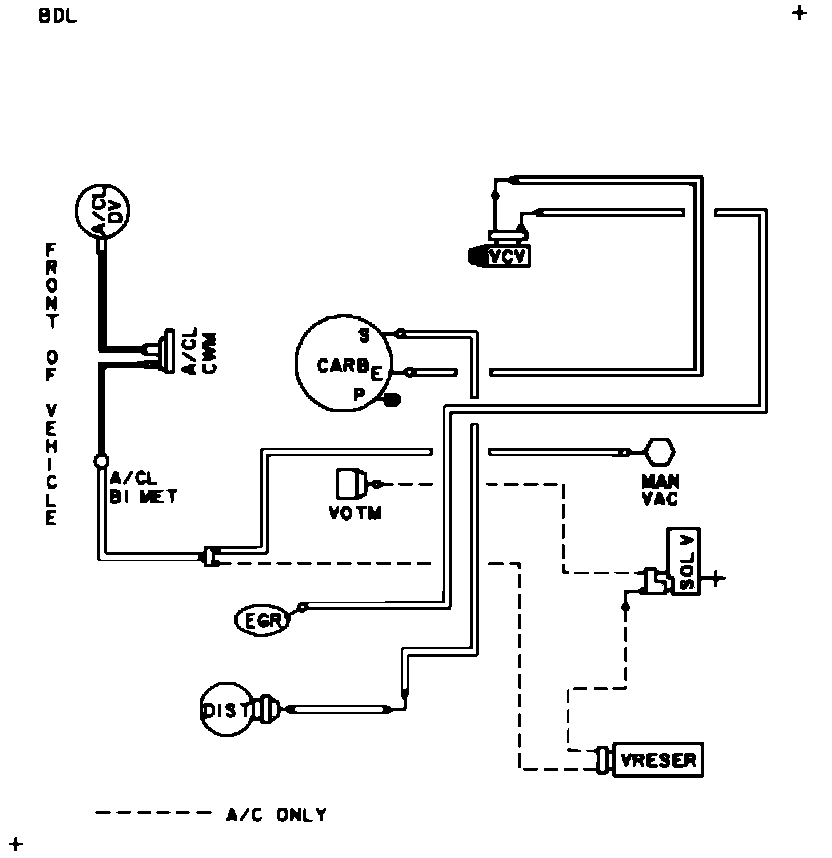

Vacuum Hose Routing:
