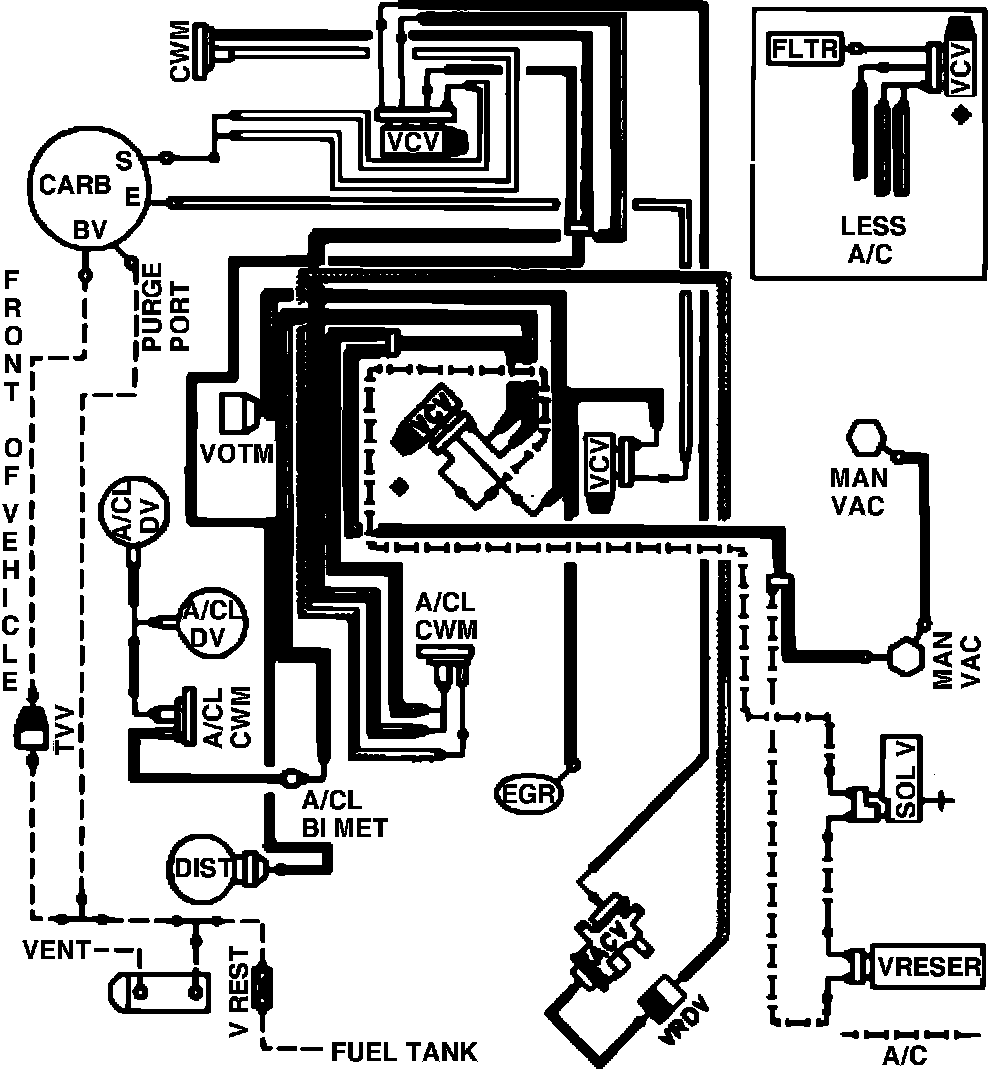

Fig. 23 Calib. Code 2-04B-R10 Fed. W/H.O., Exc. High Alt.
Fig. 23 Calib. Code 2-04B-R10 Fed. W/H.O., Exc. High Alt.
Vacuum hose routing:
