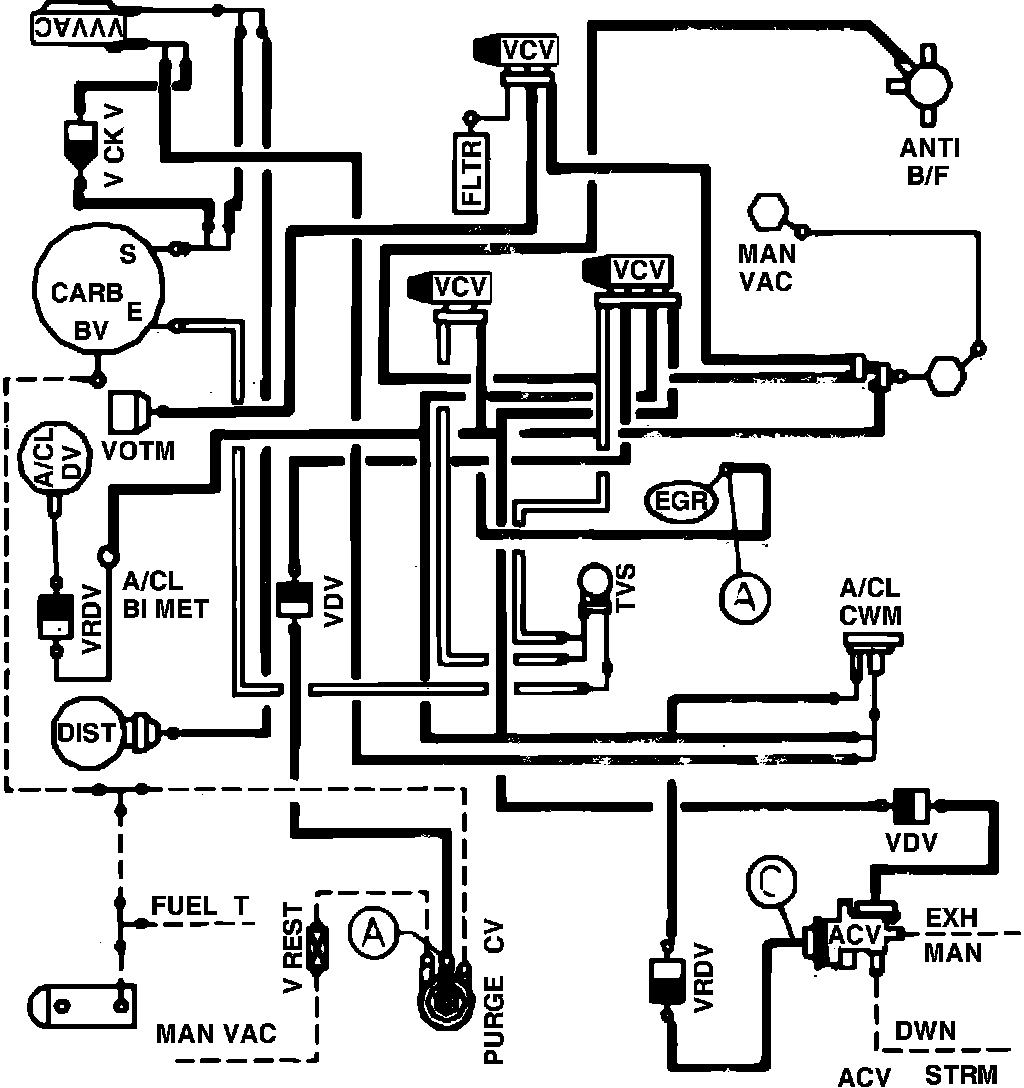

Fig. 2 Calib. Code 1-03S-R0 W/O A/C, Exc. High Alt.
Fig. 2 Calib. Code 1-03S-R0 W/O A/C, Exc. High Alt.
Vacuum hose routing:
