FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1982
>>
LN7 L4-098 1.6L VIN 4 2-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>

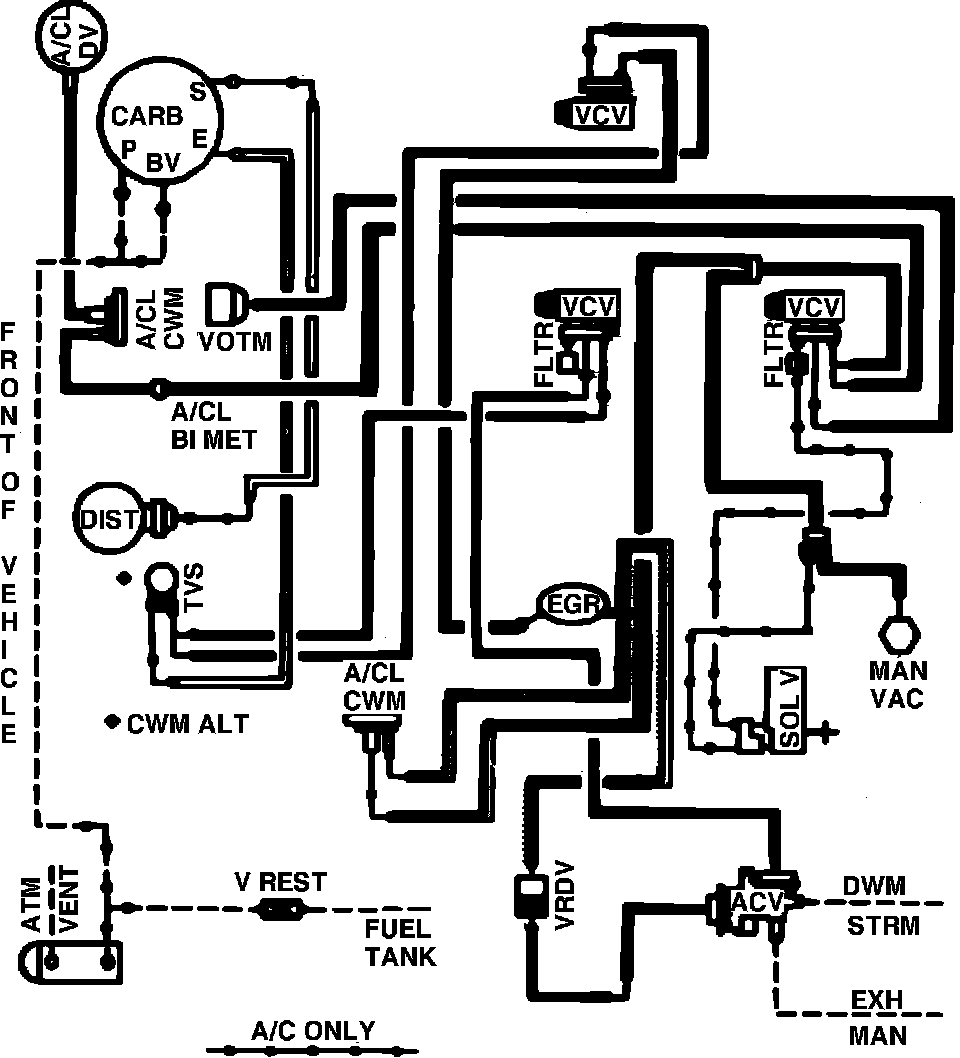

Fig. 14 Calib. Code 2-03C-R11 Exc. High Alt.
Fig. 14 Calib. Code 2-03C-R11 Exc. High Alt.
Vacuum hose routing.:
