Front Crankshaft Seal: Service and Repair

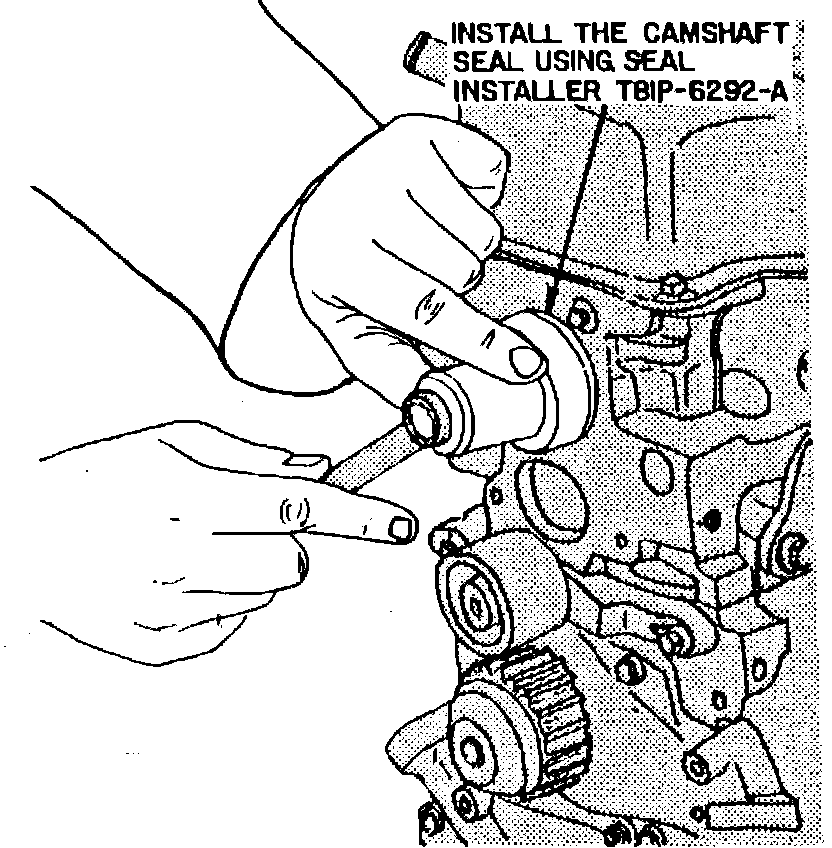

Fig. 13 Camshaft front oil seal installation:

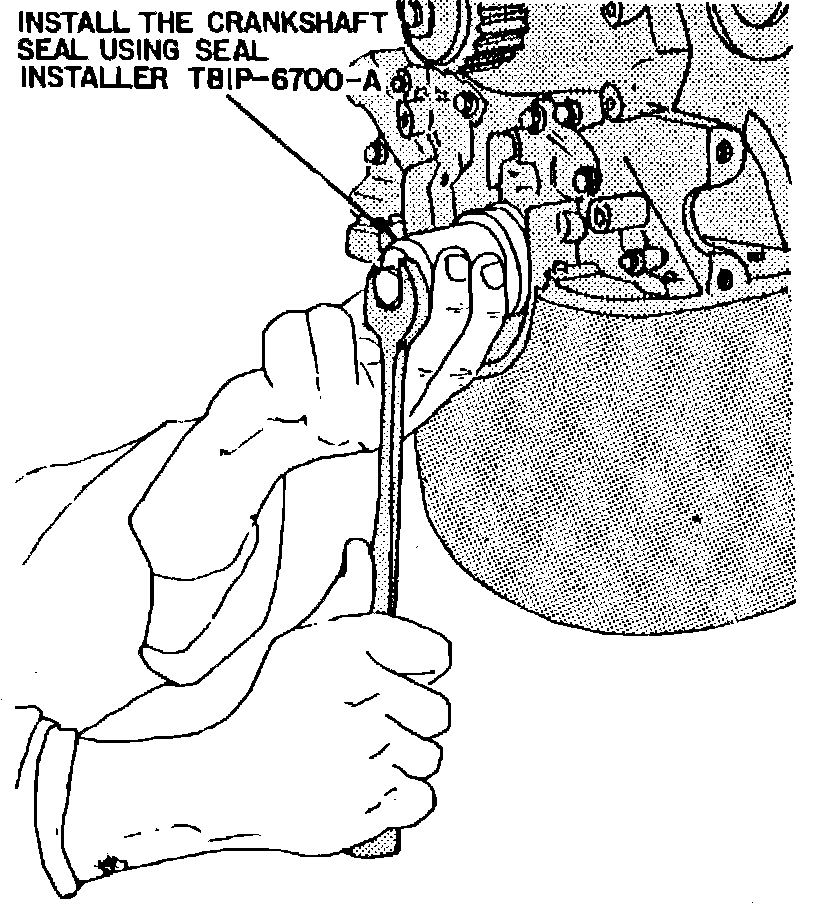

Fig. 14 Crankshaft front oil seal installation:

1. Remove timing belt as described under ``Timing Belt, Replace.''
2. Remove camshaft sprocket or crankshaft pulley as necessary.
3. Remove appropriate seal, Figs. 13 and 14.
4. Reverse procedure to install.
