Engine Piston - Identification Markings
83ford14 Article No. 83-12-6PISTONS (1.6L) - IDENTIFICATION MARKINGS
FORD 1981-83 ESCORT, EXP
LINCOLN-MERCURY 1981-83 LYNX, LN7

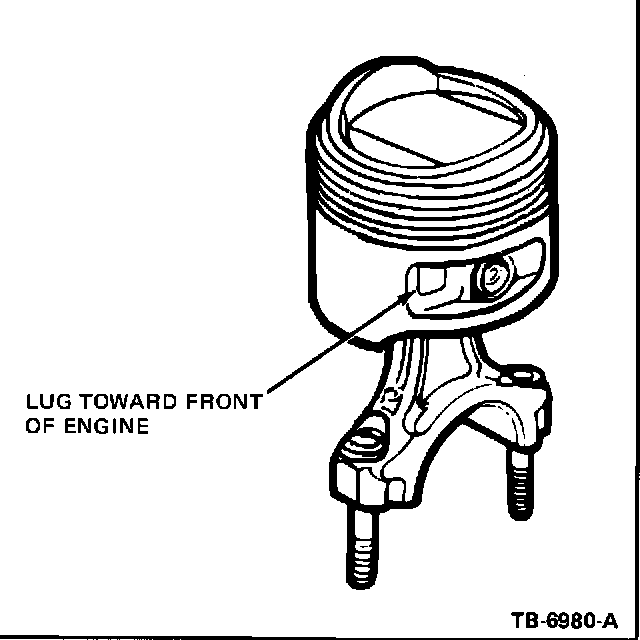

Figure 13:
Piston orientation in relation to front of engine is identified by either an arrow stamped at the top surface of the piston or a small lug located left of the piston pin hole (Figure 13).
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
