Connector Wire, Power Window Switch

Wire Removal






If the switch connector or a wire leading to the connector is replaced, the wire(s) can be removed from the connector without disassembling the connector.

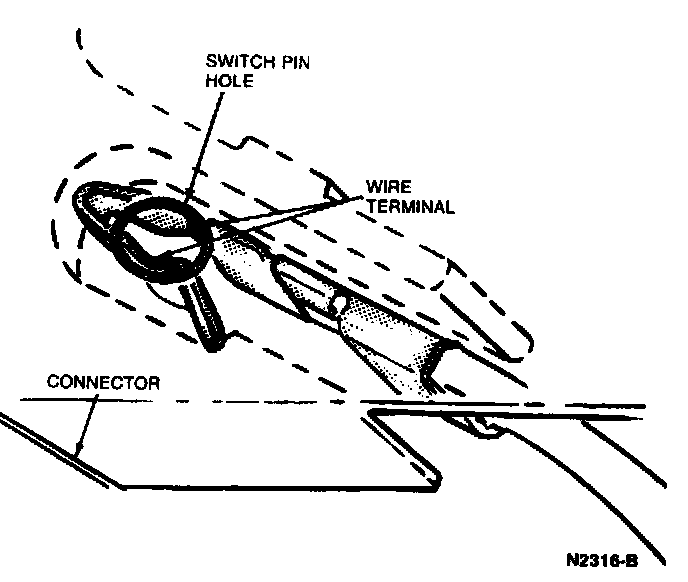

To remove a wire from the connector, insert a needle-like tool in the edge of the pin hole, and bend the terminal in.
Pull the wire and terminal from the connector.

To install the terminal in the connector, open the terminal and insert it into the wire hole.
