Home >> Mercury >> 1982 >> Grand Marquis V8-351 5.8L >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Powertrain Management >> Emission Control Systems >> 7-76J - R11

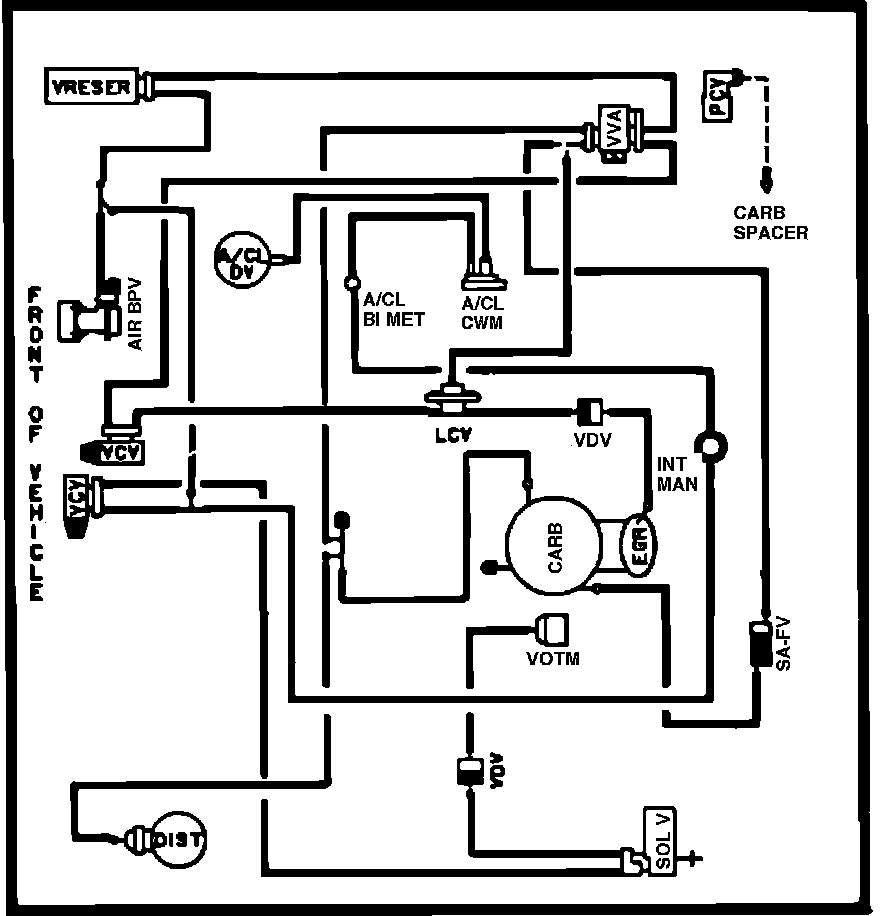

7-76J - R11

Calibration: 7-76J-R11:
