Home >> Mercury >> 1982 >> Grand Marquis V8-351 5.8L >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Powertrain Management >> Emission Control Systems >> 7-75J6- R14

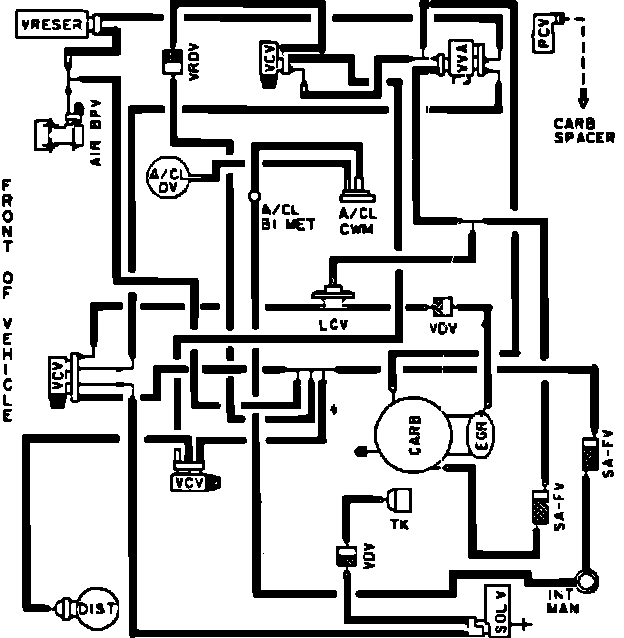

7-75J6- R14

Calibration: 7-75J-R14:
