Home >> Mercury >> 1982 >> Grand Marquis V8-351 5.8L >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Powertrain Management >> Emission Control Systems >> 2-76J - R17

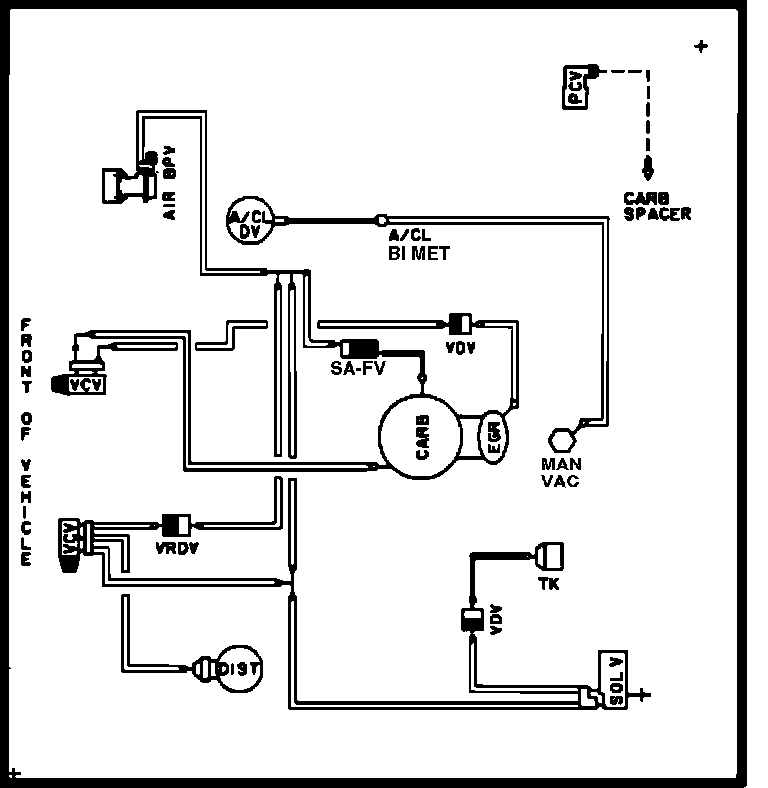

2-76J - R17

Calibration: 2-76J-R17:
