Home >> Mercury >> 1982 >> Grand Marquis V8-351 5.8L >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Powertrain Management >> Emission Control Systems >> 2-75A6- R10

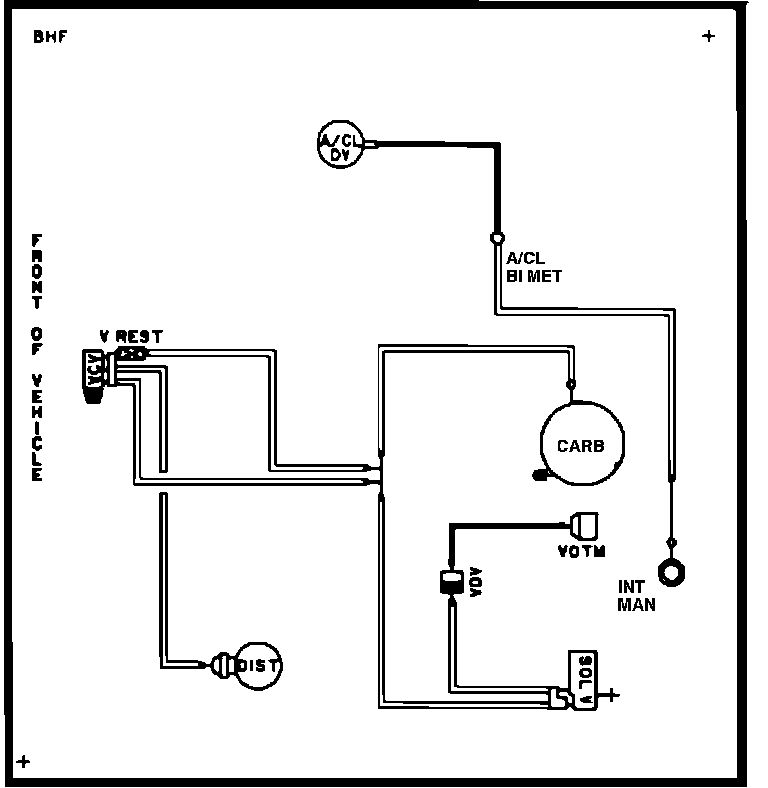

2-75A6- R10

Calibration: 2-75A-R10:
