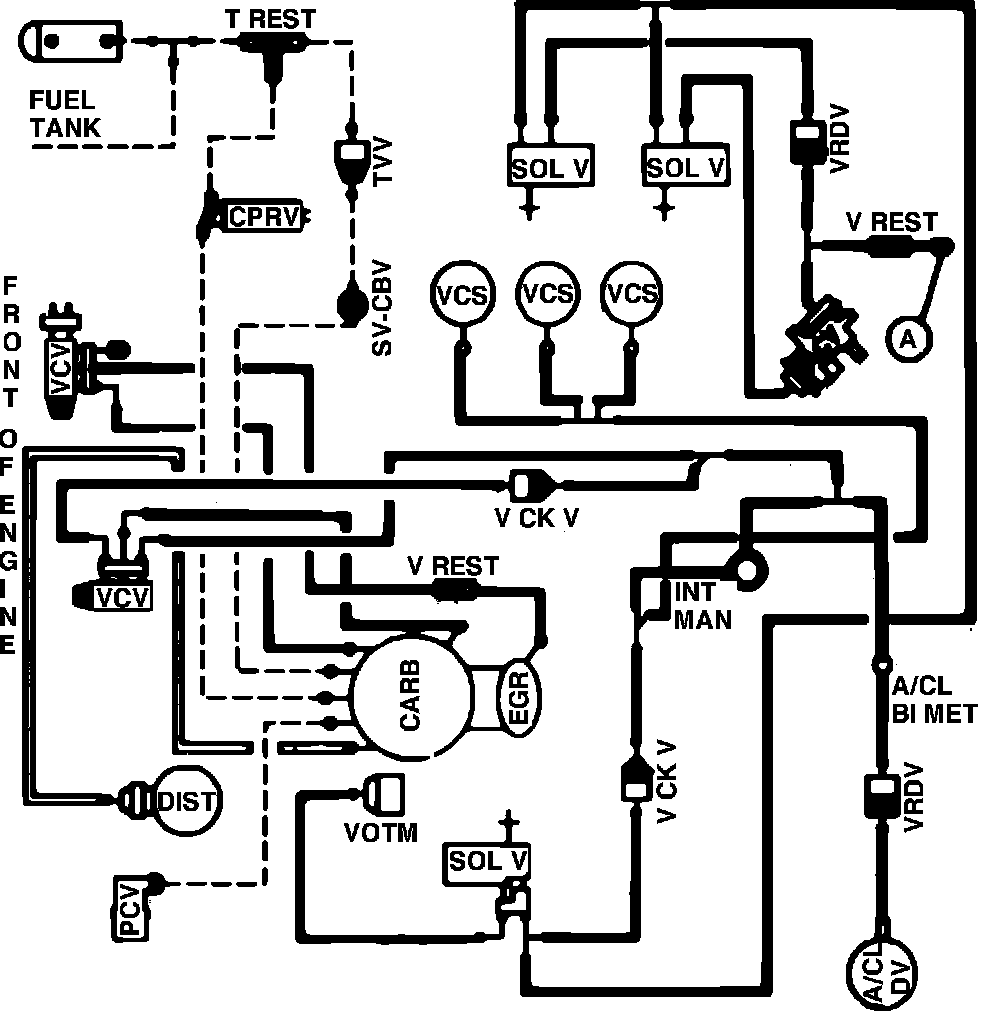

Fig. 61 Calib. Codes 1-18U-R0;2-18U-R10 Fed. W/O.D. No High Alt
Fig. 61 Calib. Codes 1-18U-R0;2-18U-R10 Fed. W/O.D. No High Alt
Vacuum hose routing:
