Choke Thermostat/Heater: Locations

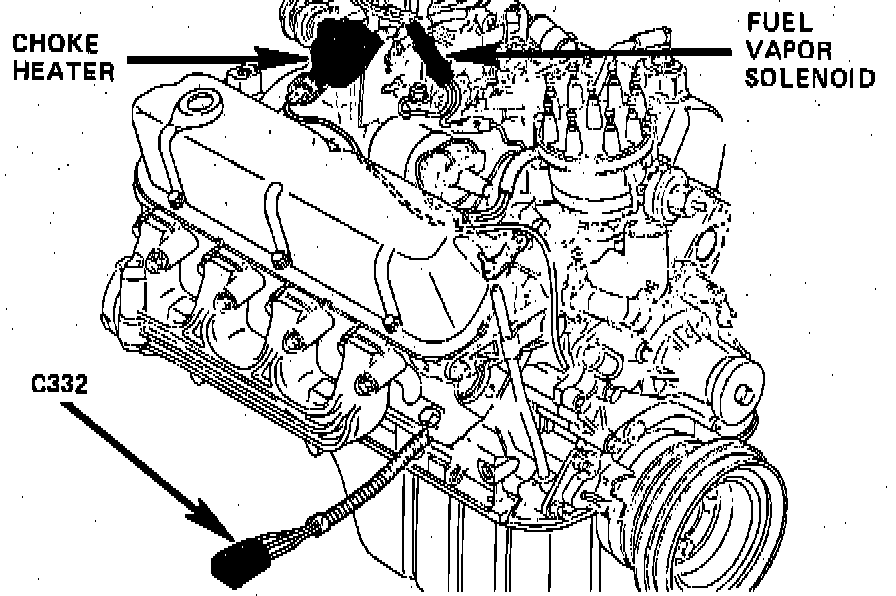

RH Side Of Engine.:




LH Rear Of Carburetor Or Throttle Body

Applicable to: 1981 V8-255/4.2L & V8-302/5.0L Engines w/Microprocessor Control System (MCU)

RH Side Of Engine.:




LH Rear Of Carburetor Or Throttle Body

Applicable to: 1981-82 V8-255/4.2L & V8-302/5.0L Engines Less Microprocessor Control System (MCU)

RH Side Of Engine.:




LH Rear Of Carburetor Or Throttle Body

Applicable to: 1982 V8-255/4.2L Engine w/Microprocessor Control System (MCU)
