Oil Pressure Sender: Locations

LH Front Of Engine.:

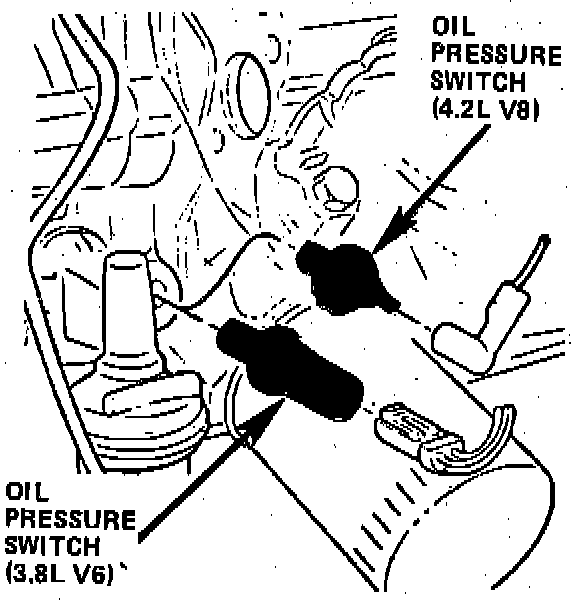

LH Front Bottom Of Engine Block

Applicable to: 1982 V6-232/3.8L & V8-255/4.2L Engines
