Engine - Poor Performance/Fuel Economy
Article No: 82-11-5June 4, 1982
Subject:
Poor Performance/Fuel Economy
Ford
1982 Granada And T-Bird With 3.8L Engines Calibrations: 2-14W RO & R1O AND 2-14X R1 & R1O
Lincoln-Mercury
1982 Cougar And XR7 With 3.8L Engines Calibrations: 2-14W RO & R1O AND 2-14X R1 & R1O
Warning:
This Modification Is Authorized Only For The Listed Engine Calibrations. Performing This Modification On Other Engine Calibrations Is Unauthorized And Could Create Liability Under Applicable Federal Or Local Laws.
For customer concerns of any or all of the following.
1. Poor performance and fuel economy.
2. Loading at idle during choke operation.
3. Hard starting after soak.
4. Black smoke out of the tail pipe.

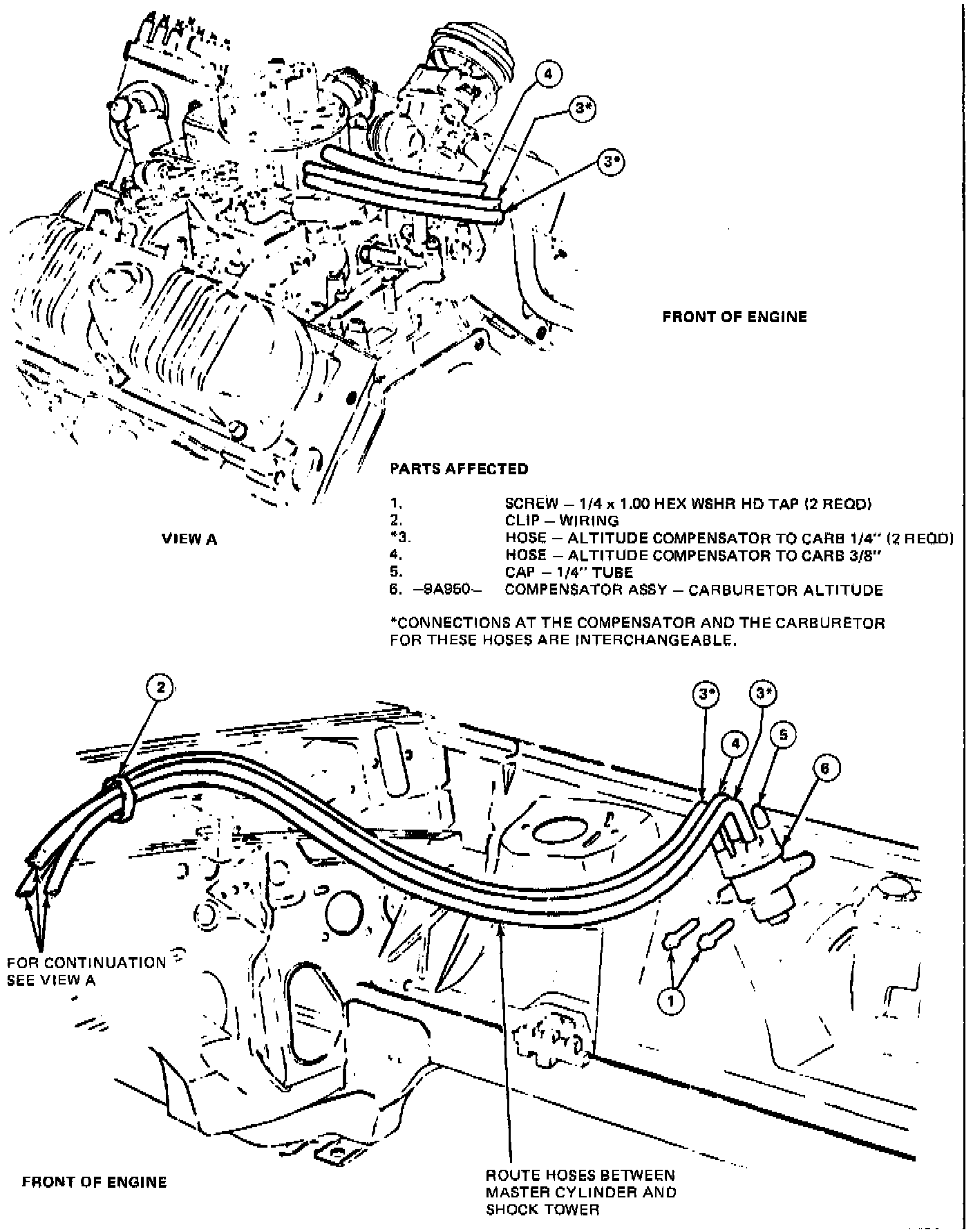

Figure 7:
The altitude compensator (-9A950-) or associated hoses may have been omitted from the specified vehicles. Check if the vehicle is equipped with the compensator and is correctly installed. If not, install the compensator and hoses as shown in Figure 7.
If a vehicle is modified, it is necessary to obtain an Authorized Modifications decal and list the date, dealer number and alterations performed as shown below. Select a prominent place adjacent to the Vehicle Emission Control Information decal suitable for installing the Authorized Modifications decal. Clean the area, install the decal and cover it with a clear plastic decal shield.

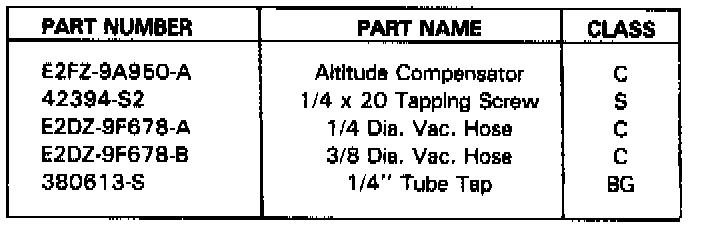

Parts Block
Warranty Status: Reimbursable within the provisions of the Warranty and Policy Manual.
Operation: SP 9950-B-82
Time: 0.4 Hr.
DLR. Coding:
Basic Part No. Code:
MISBLD 39
