Mercury
>>
1982
>>
Cougar/XR7 V6-232 3.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
With Thermactor
>>
Automatic
>>
Calib. Code 2-14X-R1
Calib. Code 2-14X-R1

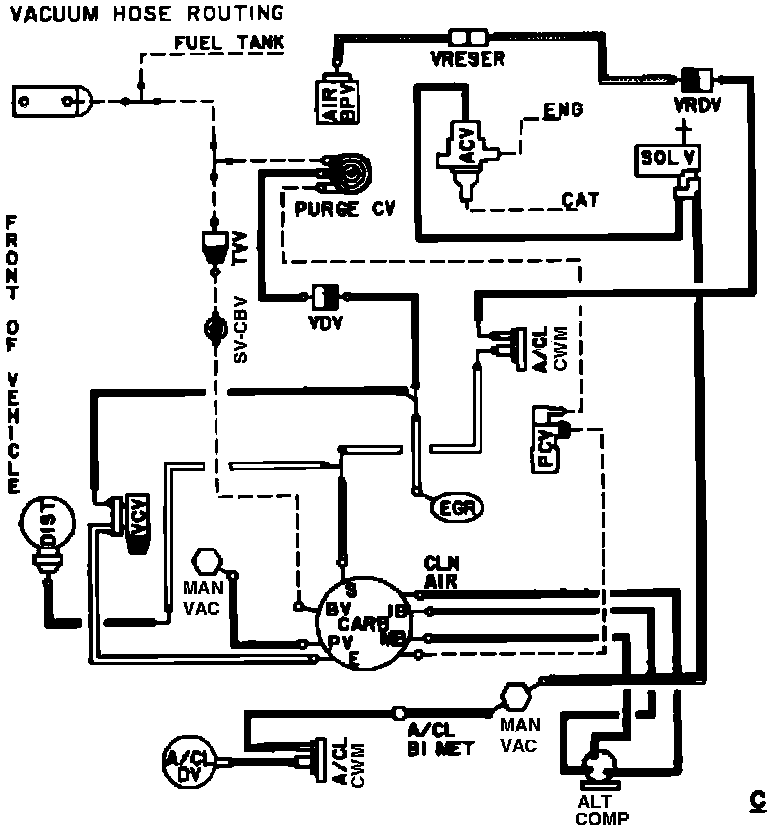

Vacuum Hose Routing:
