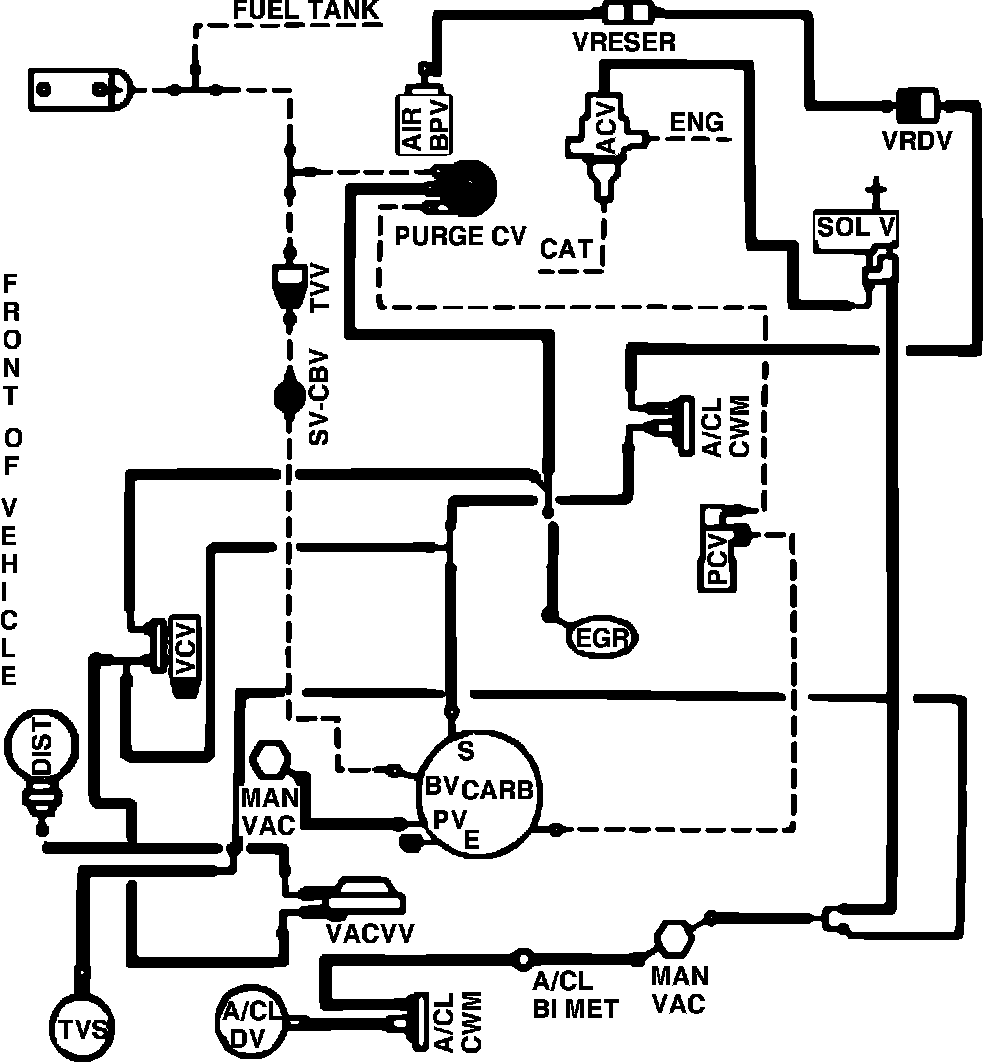

Fig. 50 Calib. Code 2-14C-R0 Federal, Exc. High Alt.
Fig. 50 Calib. Code 2-14C-R0 Federal, Exc. High Alt.
Vacuum hose routing:
