Engine - Tip-In Detonation/Spark Knock
Article No: 82-11-3June, 4 1982
Subject:
Spark Knock - 3.8L (2-14A-R00)
Ford
1982 Granada With 3.8L Engines Calibration: 2-14A ROO
Lincoln-Mercury
1982 Cougar With 3.8L Engines Calibration: 2-14-ROO
Warning:
This Modification Is Authorized Only For The Listed Engine Calibration. Performing This Modification On Other Engine Calibrations Is Unauthorized And Could Create Liability Under Applicable Federal Or Local Laws.
"Tip-In" detonation on 1982, 3.8L equipped Granada/Cougar vehicles may be serviced by installing a new distributor and a vacuum regulator valve.
1. Remove distributor, cap, adaptor and rotor and fold back out of the way.
2. Remove original distributor.
3. Install new distributor. Reinstall rotor, cap and adaptor.
Figure 2:
4. Remove vacuum vent valve and retaining clip from the air cleaner tray. Discard valve and clip (Figure 2).
5. Install rubber plug (377678-S) in opening in air cleaner tray.
6. Remove the vacuum vent valve connector from the vacuum hoses.
Figure 4:
7. Identify the hose coming from the spark port on the carburetor which ran to the removed vent valve. Connect this hose to the proper location on vacuum regulator valve (9F490) being added (Figure 4).
8. Connect the remaining former vent valve vacuum hose which runs to the distributor port on the regulator valve (Figure 4).
9. Connect a new piece of 5/32" vacuum hose from the "manifold input" (Figure 4) of the regulator valve to any convenient manifold vacuum source.

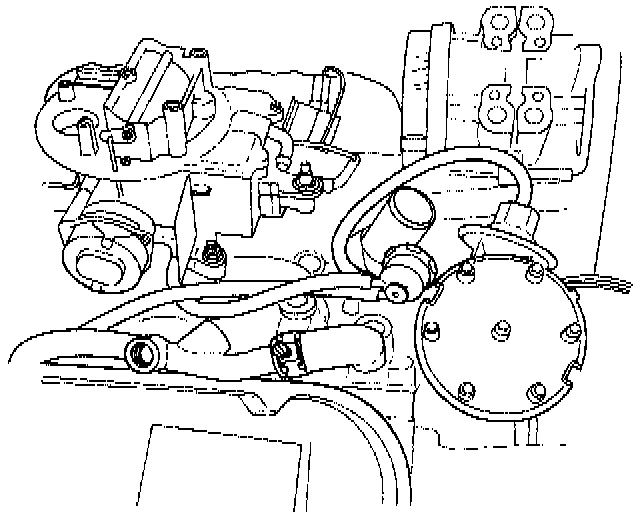

Figure 3:
10. Position vacuum regulator valve as shown in Figure 3. Check all connections for accuracy and vacuum leaks.
11. Set initial timing to 0 ° BTDC.
Obtain an Authorized Modifications decal and list the date, dealer number and alterations performed as shown below. Select a prominent place adjacent to the Vehicle Emission Control Information decal suitable for installing the Authorized Modifications decal. Clean the area, install the decal and cover it with a clear plastic decal shield.
Other Applicable Articles: None

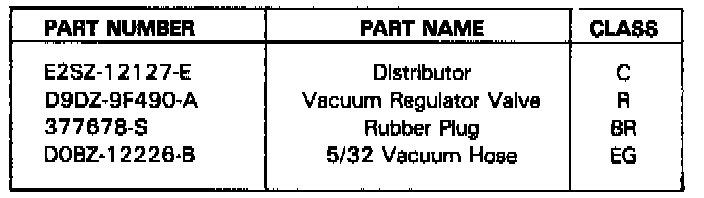

Parts Block
Warranty Status: Reimbursable within the provisions of the Warranty and Policy Manual.
Operation: SP 12127-G-82
Time: 0.5 Hr.
DLR. Coding:
Basic Part No. Code:
DRIVE H9
