Engine Mount: Service and Repair

Whenever self-locking mounting bolts and nuts are removed, they must be replaced with new self-locking bolts and nuts.
On some 1982 Granada, 1982-83 Cougar and Thunderbird and 1983 LTD and Marquis models, a silver colored flange nut which retains the engine mounts to No. 2 crossmember has replaced the black nut previously used. Reduce torque on this type nut to 50-65 ft. lbs.

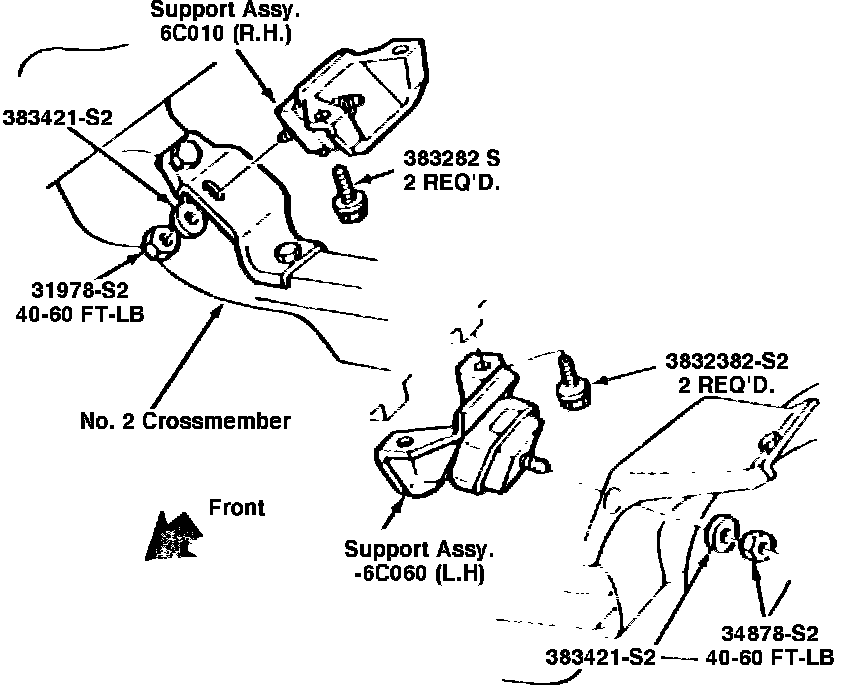

Fig. 10 Engine mount. 1982 V6-232:

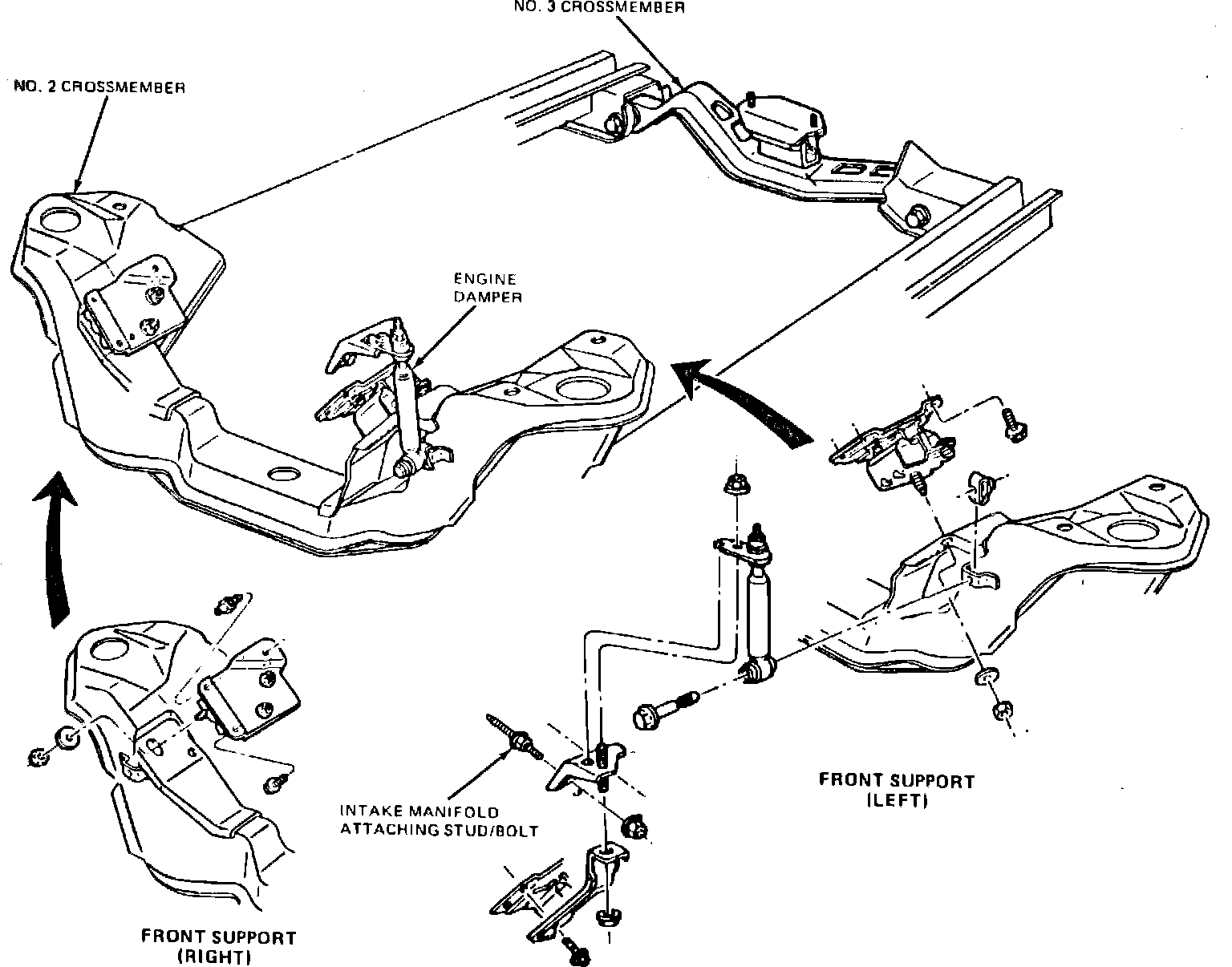

Fig. 11 Engine mounts (typical). 1982 Cougar XR-7, 1983-88 Cougar & 1982-88 Thunderbird V8-255, 302:

1982 V6-232

1. Support engine using a suitable jack and wooden block placed under oil pan.
2. Remove nut and washer attaching mount to chassis, then raise engine slightly, Fig. 10.
3. Remove bolts attaching engine mount and bracket to engine, then remove mount.
4. Reverse procedure to install.
