Temperature Switch (Warning Indicator): Locations

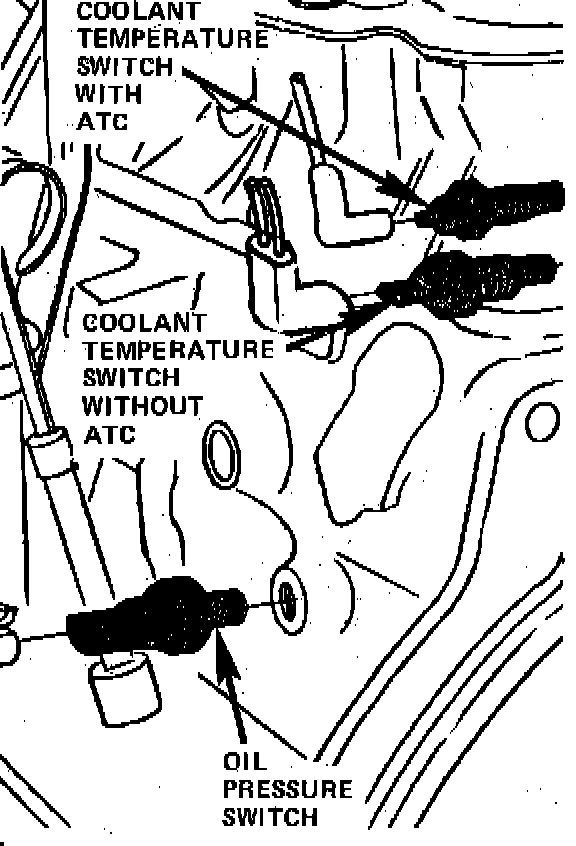

LH Rear Of Engine.:




LH Rear Of Cylinder Head

Applicable to: 1981 6-200/3.3L Engine
