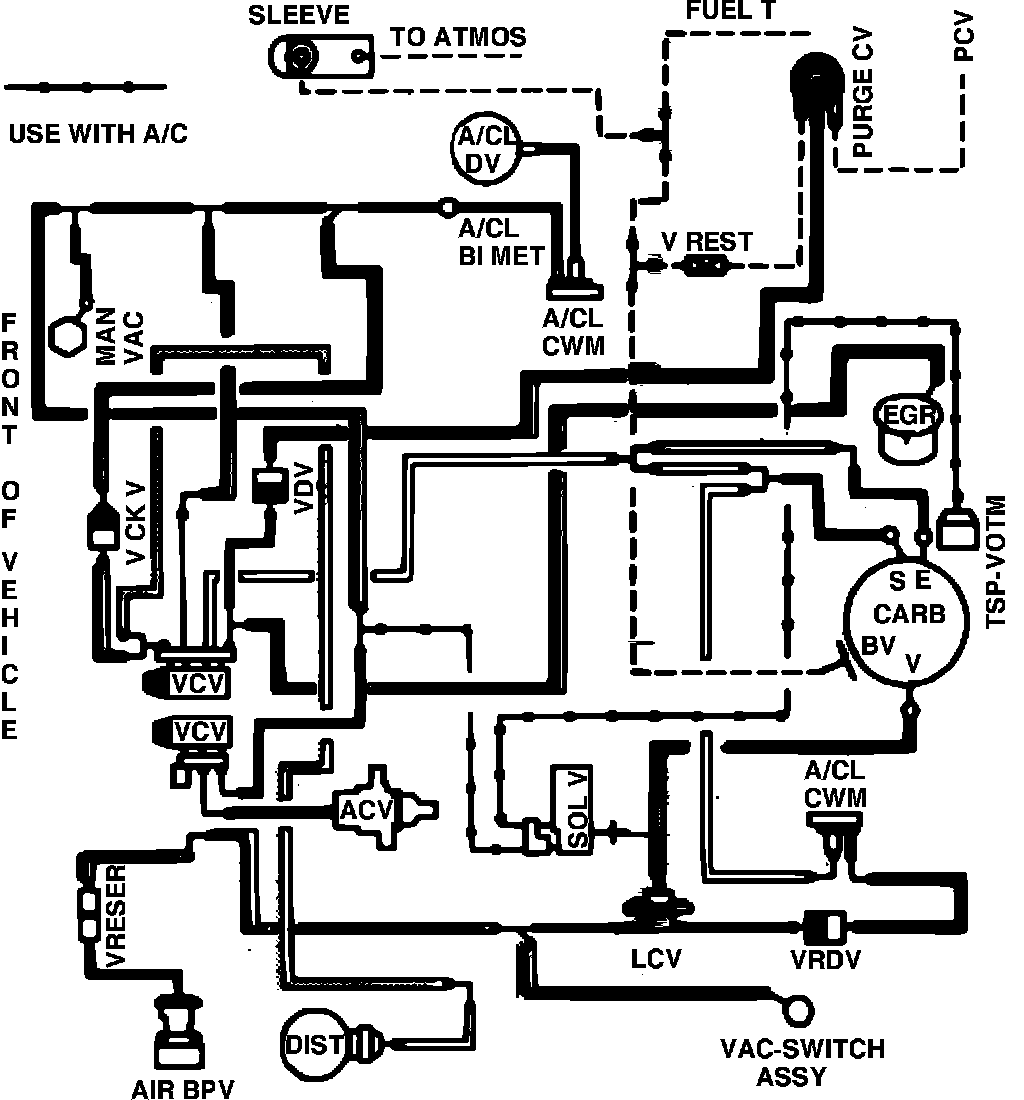

Fig. 40 Calib. Code 1-12B-R0 Federal, Exc. High Alt.
Fig. 40 Calib. Code 1-12B-R0 Federal, Exc. High Alt.
Vacuum hose routing:
