Mercury
>>
1982
>>
Colony Park V8-302 5.0L VIN F 2-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>

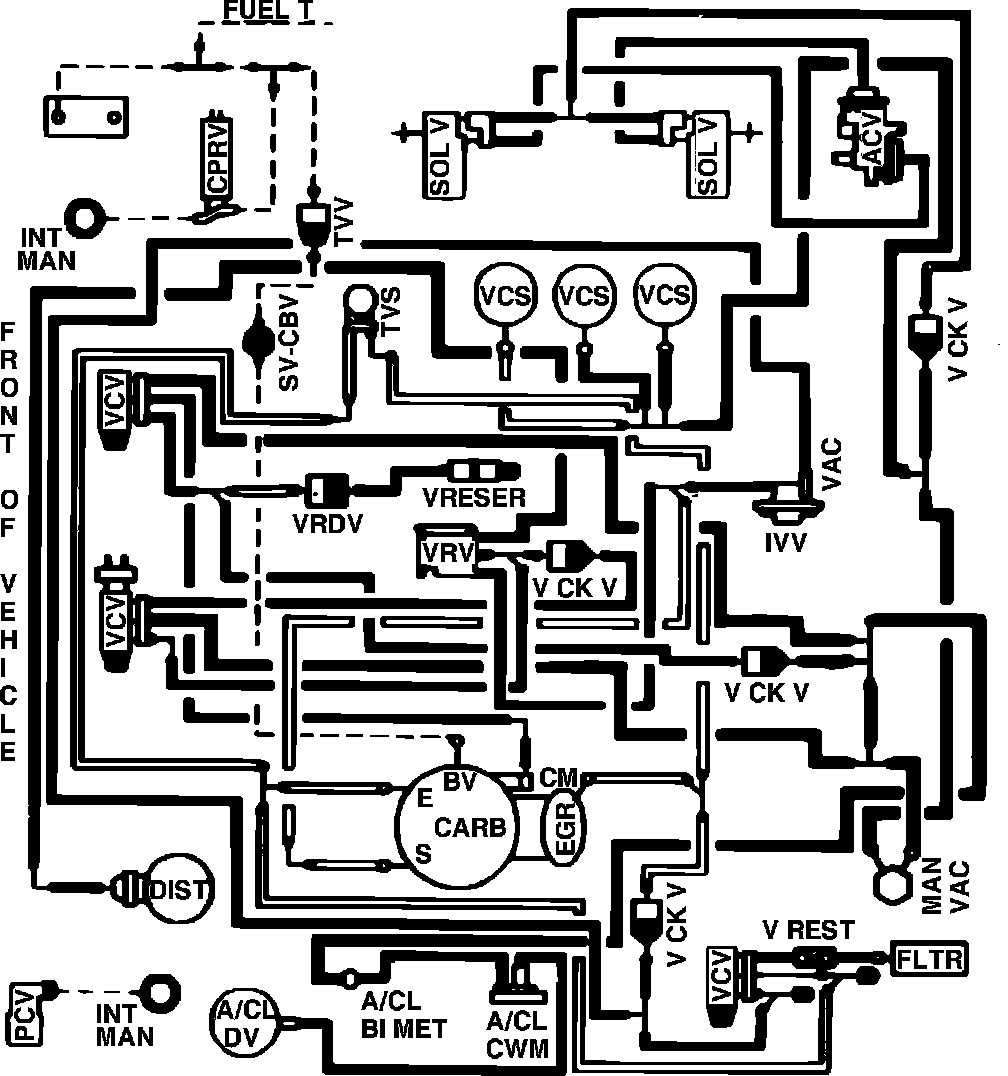

Fig. 69 Calib. Code 1-20N-R10 W/O.D., Exc. High Alt.
Fig. 69 Calib. Code 1-20N-R10 W/O.D., Exc. High Alt.
Vacuum hose routing:
