Engine Mount: Service and Repair

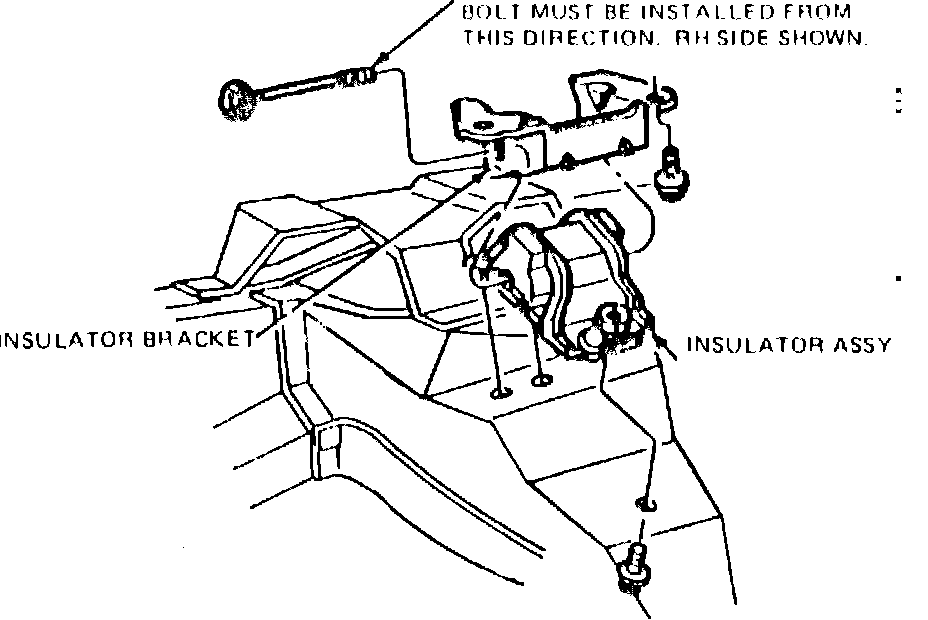

Fig. 1 Engine mount. 1982---87 V8-255 & 302:

Whenever self-locking mounting bolts and nuts are removed, they must be replaced with new self-locking bolts and nuts.

1982---88 V8-255 & 302
1. Remove fan shroud attaching screw.
2. On all models, remove nut and through bolt attaching insulator to support bracket, Fig. 1.
3. Raise the engine slightly with a jack and a wood block placed under the oil pan.
4. Remove the engine insulator assembly to cylinder block attaching bolts. Remove the engine insulator assembly and the heat shield, if so equipped.
5. Reverse procedure to install.
