FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1982
>>
Capri V8-302 5.0L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Manual Transmission/Transaxle
>>
M/T Technical Data
>>
RAD 4-SPD M/T
RAD 4-SPD M/T
82ET 4-spd M/T, Clutch (Futura/Zephyr, Granada/Cougar, Mustang/Capri):

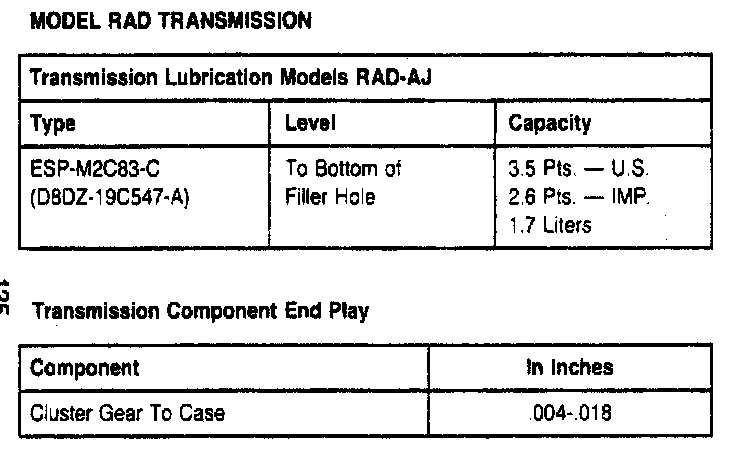

RAD 4-spd M/T, End Play:

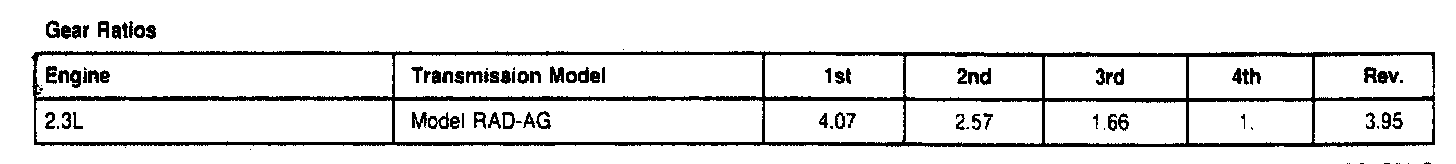

RAD 4-spd M/T, Gear Ratios:
