Control Vacuum Regulator (CVR)

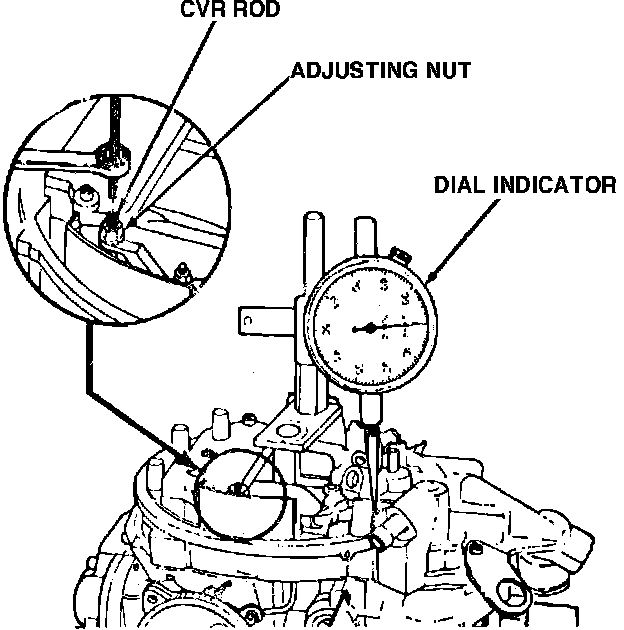

Fig. 13 Control vacuum regulator (CVR) adjustment:

1. Fig. 13 - With the dial indicator installed, remove the stator cap with tool T77L-9848-A.
2. Press downward on CVR rod until bottomed on seat.
3. Note the dial indicator reading.
- If not within specifications, place a 3/8 inch box end wrench over CVR adjusting nut and, using a 3/32 inch allen wrench, turn CVR rod to adjust the travel.
