Home >> Mercury >> 1982 >> Capri V8-302 5.0L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams >> With Thermactor >> Automatic >> Calib. Code 1-20D-R1

Calib. Code 1-20D-R1

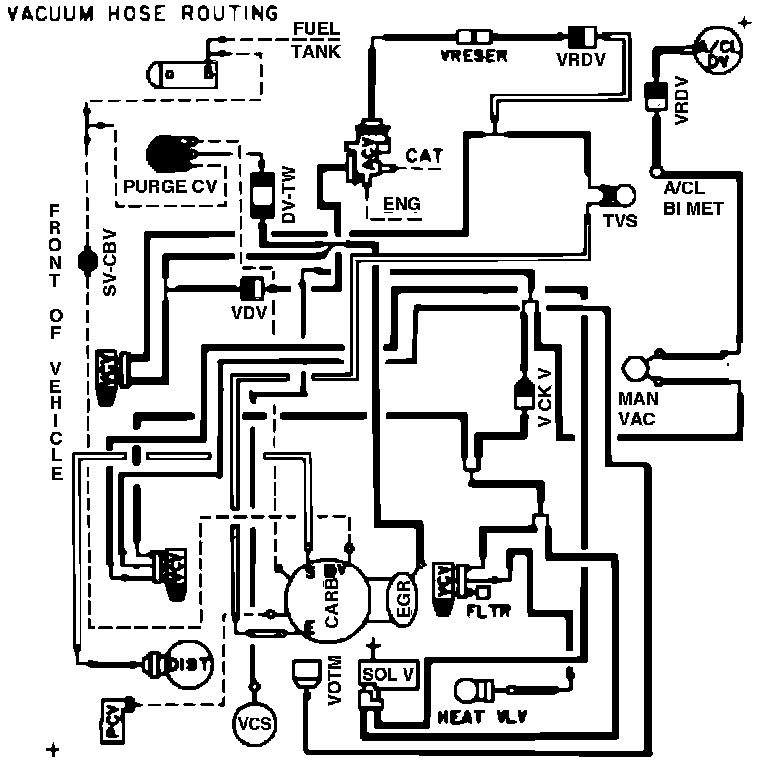

Vacuum Hose Routing:
