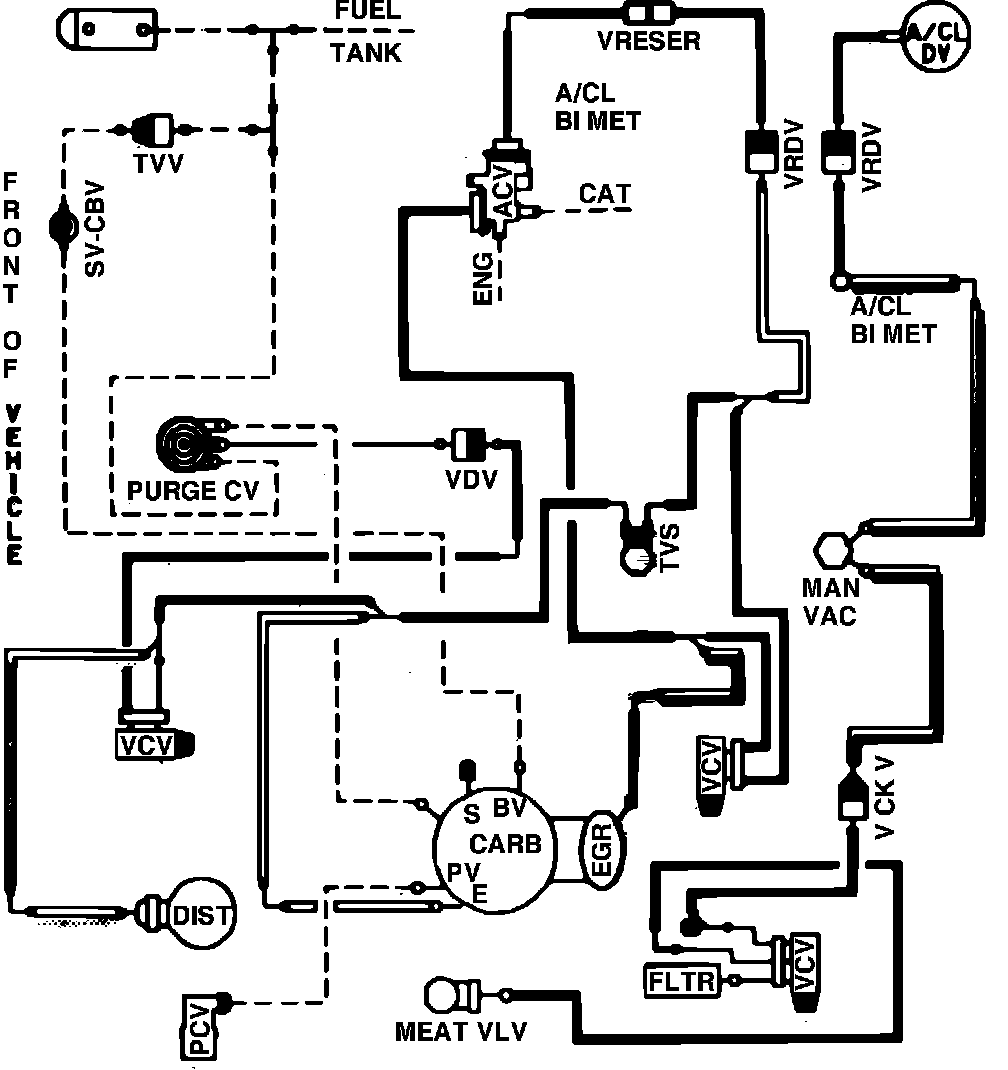

Fig. 62 Calib. Code 2-18B-R13 Federal, Exc. A/C & High Alt.
Fig. 62 Calib. Code 2-18B-R13 Federal, Exc. A/C & High Alt.
Vacuum hose routing:
