General Engine Specifications

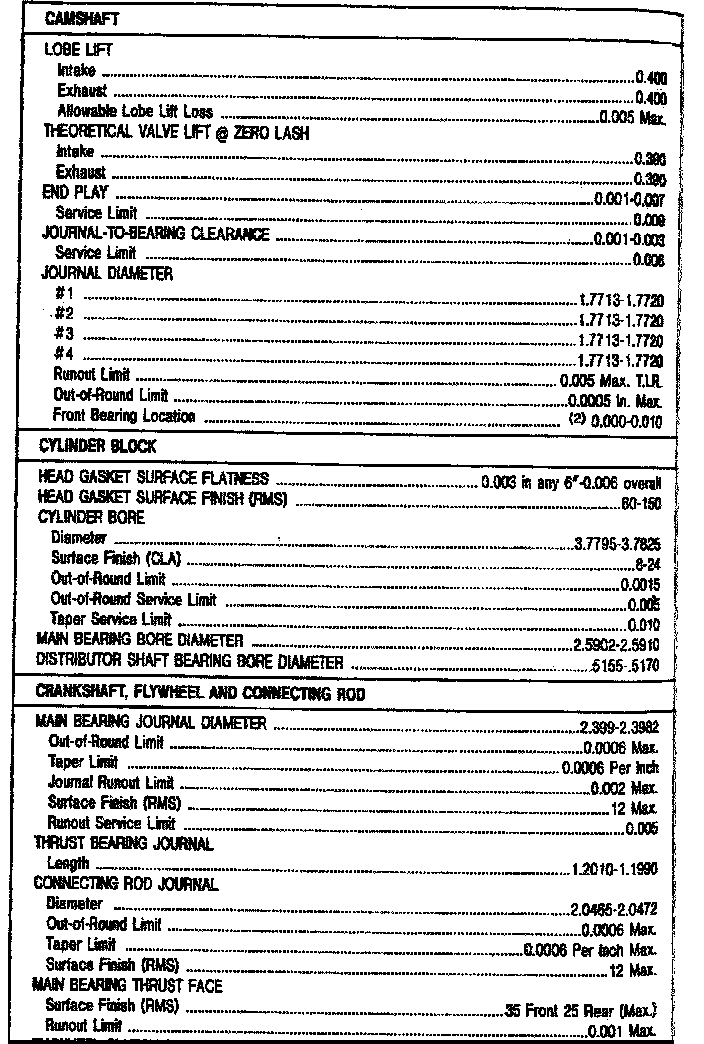

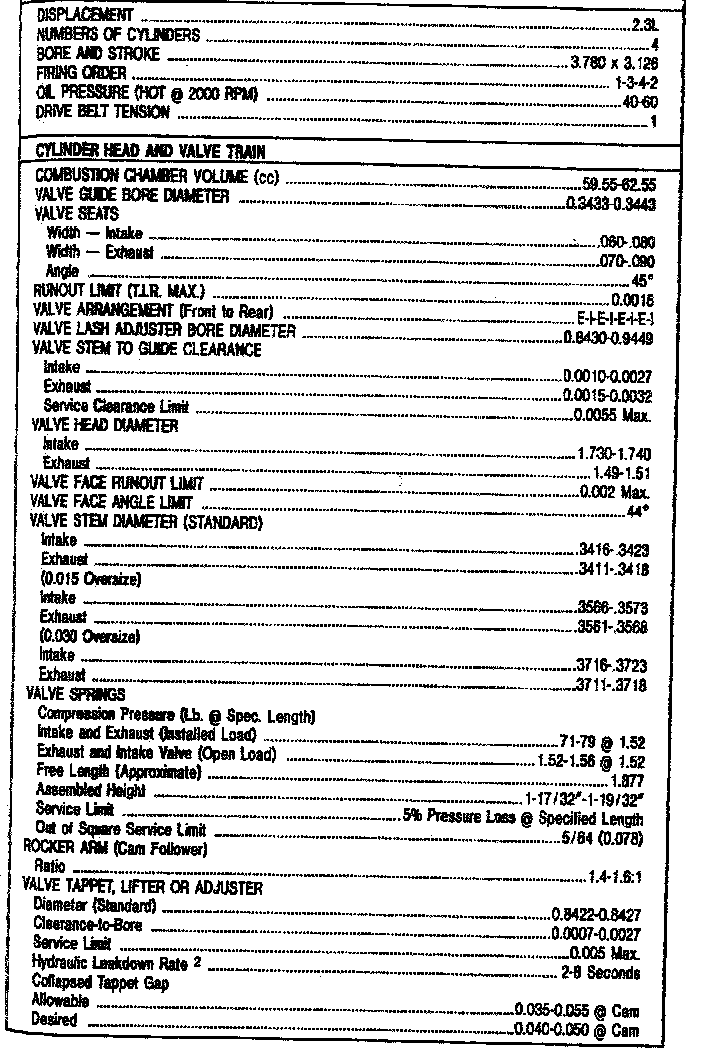

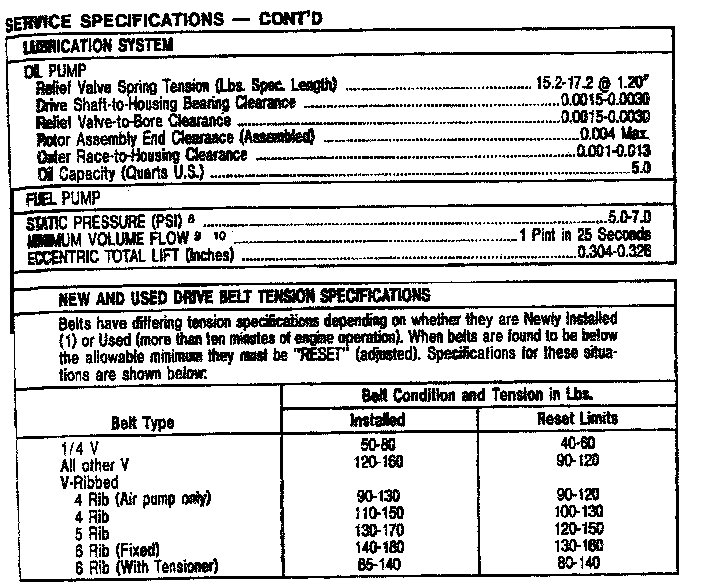

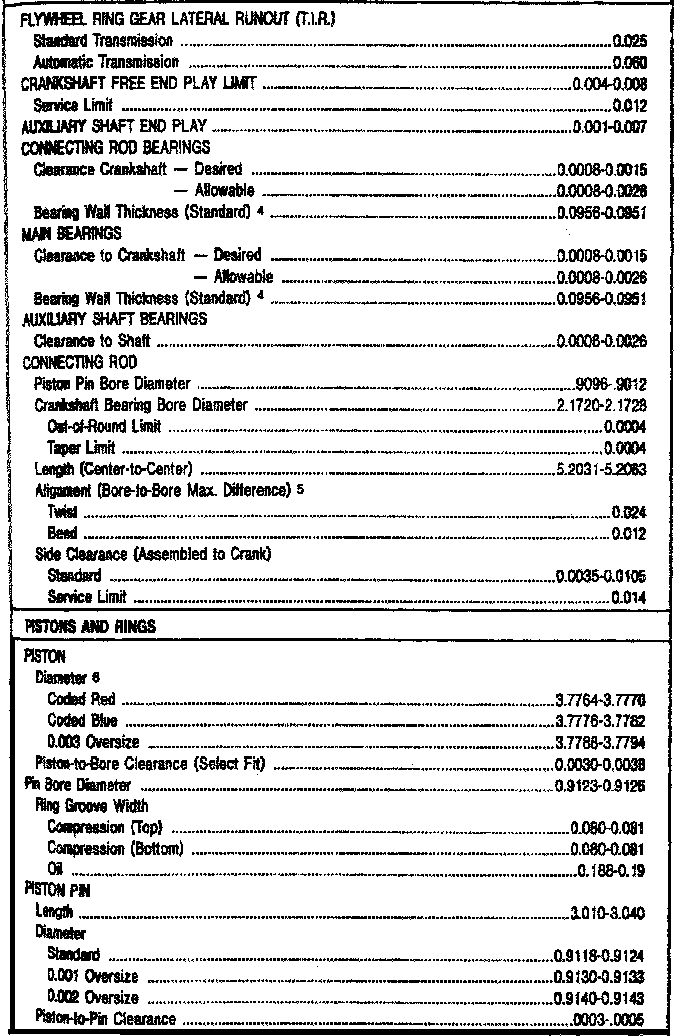

2.3L SOHC Engine Mechanical Data:





2.3L SOHC Engine Mechanical Cont.:





2.3L SOHC Engine Mechanical Cont.:





2.3L SOHC Engine Mechanical Cont.:





2.3L SOHC Engine Mechanical Cont.:





2.3L SOHC Engine Mechanical Cont.:
