Home >> Mercury >> 1982 >> Capri L4-140 2.3L SOHC >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Powertrain Management >> Emission Control Systems >> Fig. 35 Calib. Code 2-05P-R0 Calif., 5-Speed Trans.

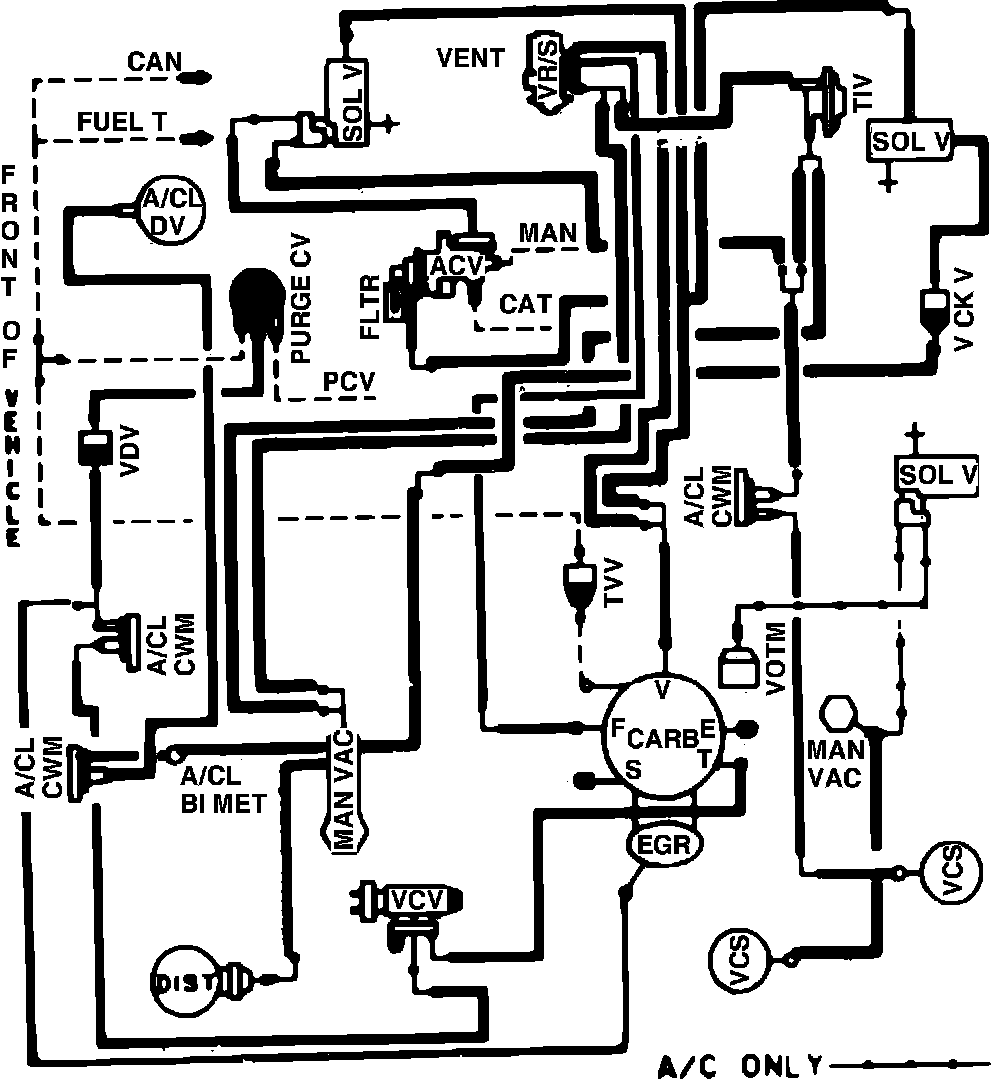

Fig. 35 Calib. Code 2-05P-R0 Calif., 5-Speed Trans.

Vacuum hose routing:
