Home >> Mercury Truck >> 2007 >> Mountaineer AWD V8-4.6L VIN 8 >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Locations

Control Module HVAC: Locations

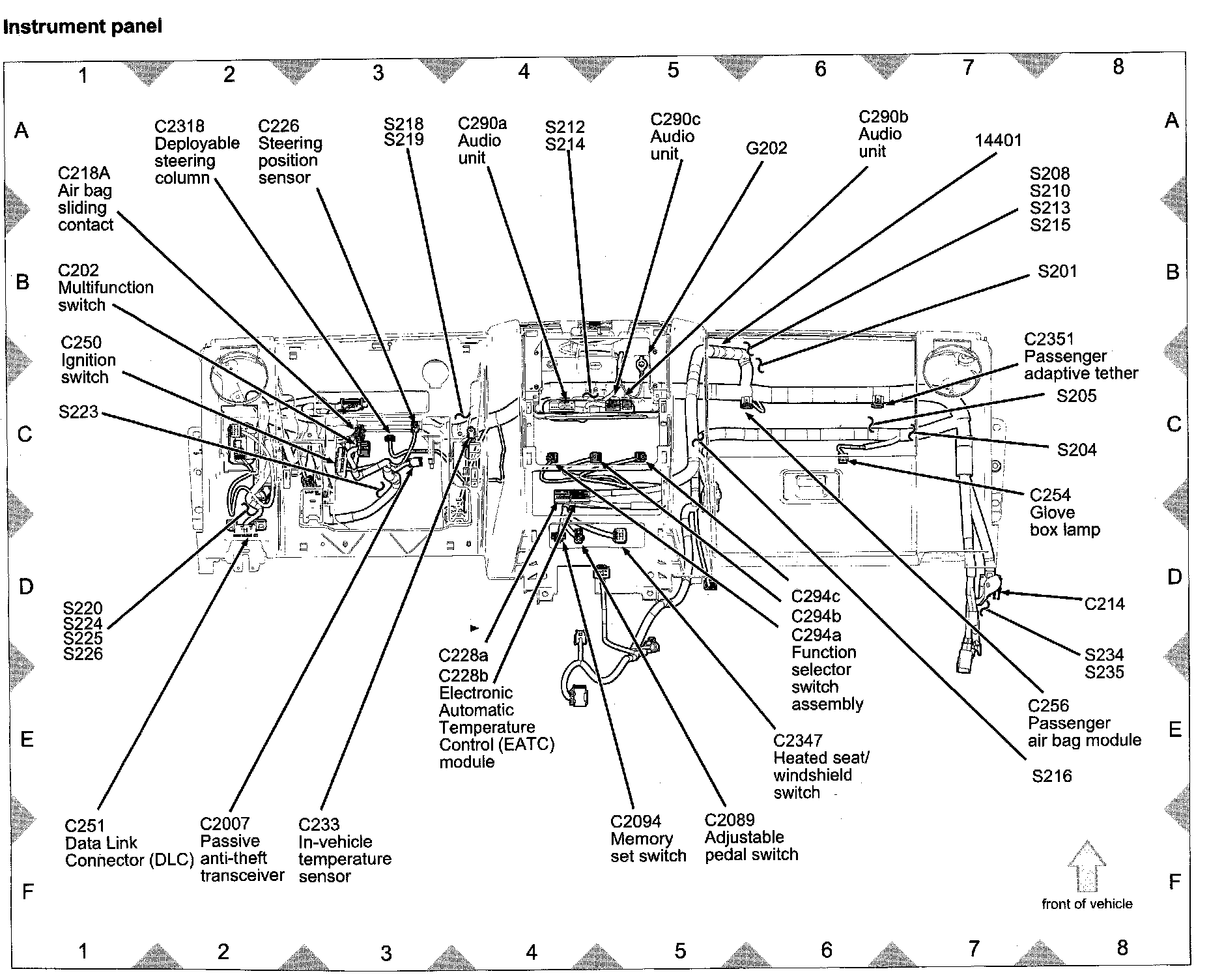

View 151-10 (Instrument Panel):
